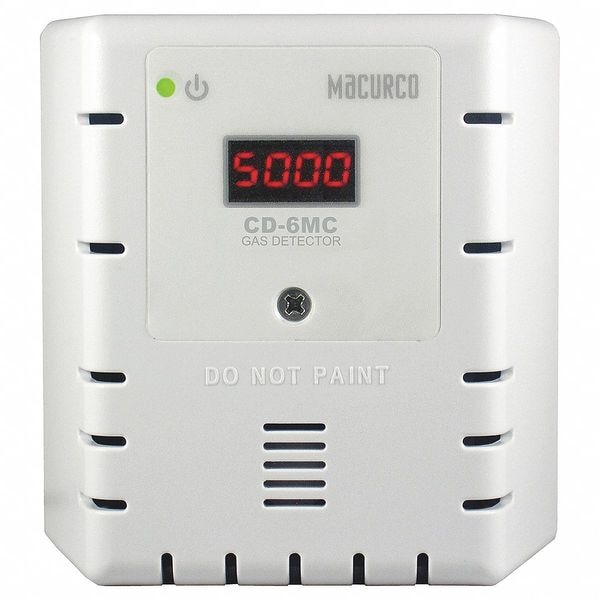

Macurco Gas Detector, Controller, Transducer CD-6MC - main

Gas Detector, Controller, Transducer

  • Mfr # CD-6MC

  • Zoro # G1204233

product price:  $675.99
/ea
Free Shipping & Returns

Key Features

For Use With
DVP-120
Gas Detected
Carbon Dioxide
Chemical Formula
CO2
Sensor Range
0 to 5000 ppm
Operating Temp. Range
32 Degrees to 122 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CD-6MC
Zoro #
G1204233
UPC #
-
Country of Origin
United States

Dimensions

Width
4 in
Depth
2 1/8 in
Height
4 1/2 in
Overall Depth
4 in
Manufacturer Warranty Length
2 yr
Overall Width
2.12 in
Overall Height
4.5 in

Details

Item
Detector/Controller
For Use With
DVP-120
Gas Detected
Carbon Dioxide
Chemical Formula
CO2
Sensor Range
0 to 5000 ppm
Operating Temp. Range
32 Degrees to 122 Degrees F
Resolution
50 ppm
Features
Selectable Fan and Alarm Relay Actuation Settings
Gas Type
CO2
Includes
Manual
Connection
Plugs/Terminals
Number of Channels
0
Alarm Type
Audible and Visual
Control Type
4 to 20mA
Color
White
Display
LED
Status Indicator
LED
Power Required
12 to 24V AC or 12 to 32V DC
Standards
cETLus
IP Rating
Not Rated
Product Type
Stand-Alone Detector & Controller
Measurement Range
Carbon Dioxide (0 to 5,000 ppm)
Mount Type
Bolts/Screws
Operating Humidity - Maximum
90 %
For Environment
Hazardous Locations
Alarm Setting Adjustment
Adjustable Alarm Setting
Display Type
Digital
Housing Color
Gray, White
Input Current
23 mA @ 24V DC (Standby), 50 mA @ 24V DC (Fan Relay), 75 mA @ 24V DC (Alarm)
Alert Type
Internal Buzzer
Interchangeable Sensors
No
Operating Humidity - Minimum
10 %
Market
Commercial
Series
Commercial
Number of Gases Detected
1
Operating Temperature - Minimum
32 Degrees F
Visual Alert Type
Green LED
Sub-Brand
Macurco
Output Current
4 to 20 mA
Ties Into
Building Automation Panels, Fire Alarm Panels
Number of Digits
4
NEMA Enclosure Rating
Not Rated
Output Type
SPDT Relay
Power Source
Hardwired
Coverage Area
900 sq ft
Alarm Volume Level
85 dBA
Sensor Life
15 yr
Number of Relays
2
Operating Temperature - Maximum
122 Degrees F
Display Screen Type
LED
Sensor Type
Infrared
Voltage
12 to 24V AC, 12 to 32V DC
Operating Voltage
12 to 24V AC, 12 to 32V DC
Output Current - Minimum
4 mA
Output Current - Maximum
20 mA
Compatible Manufacturer Part Number
DVP-120

Description

Detector/Controller, For Use With DVP-120, Gas Detected Carbon Dioxide, Standards cETLus, Includes Manual, Product Type Stand-Alone Detector & Controller, Mounting Location Wall, Number of Relays 2, Sensor Type Infrared, Visual Alert Type Green LED, Display Type Digital, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 1, Coverage Area 900 sq ft, Interchangeable Sensors No, NEMA Enclosure Rating Not Rated, IP Rating Not Rated
