Madison

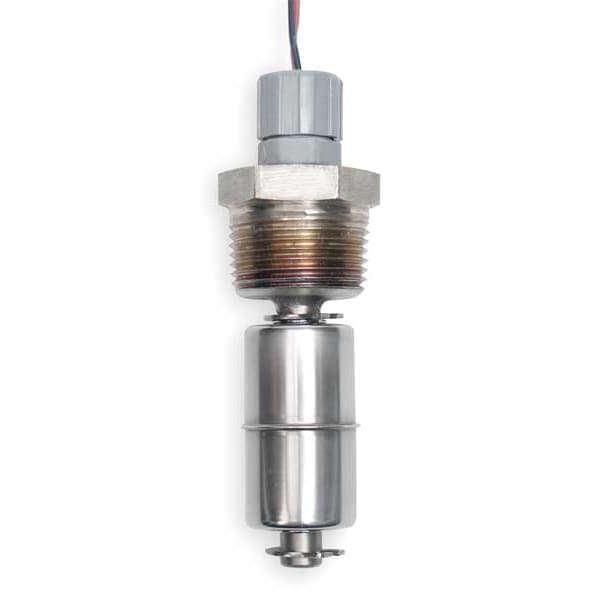

SPST Drum Liquid Level Switch Close on Rise 240VAC

original price: $142.79
4% off
new price: $135.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 240VAC
  • Max. Pressure 150 psi
  • Float Length 1.59 in
  • Max. Current 0.28 A
  • VA Rating 30
See all product information

Product Information

Dimensions

Float Length 1.59 in
Height 2.0 in
Stem Length 2 in
Conduit Size 3/4 in
Tank Connection Size 3/4 in NPT
Overall Length 2.94 in
Float Dia. 0.9 in
Overall Height 2 in
Stem Thread Size 3/4 in NPT
Float Diameter 0.9 in

Details

Voltage 240VAC
Max. Pressure 150 psi
Max. Current 0.28 A
VA Rating 30
Float Specific Gravity 0.73
Stem Material 316 Stainless Steel
Operating Temp. Range 302 Degrees F Max
Switch Function Close On Rise
Float Switch Contact Form SPST
Float Material 316 Stainless Steel
Body Material Stainless Steel
Mounting Vertical Open Tank
Contact Form SPST
Max. Voltage 240 V
Item Alternator Closed Liquid Level Switch
Float Switch Float Material Stainless Steel
Electrical Connections 22 AWG, Halar-jacketed, 72 in Leads
Standards CE, NSF
Float Rod Angle Vertical
Current Rating - Maximum 0.28 A
Proof Pressure 250 psi
Voltage Rating - Maximum 120 V DC, 240 V AC
Operating Temperature - Maximum 302 Degrees F
Electrical Connection Lead Wires
Minimum Media Specific Gravity 0.91
Mounting Style Open Tank Vertical
Product Type Alternator Closed Liquid Level Switch

Description

Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Tank Connection Size 3/4 in NPT, Max. Pressure 150 psi, VA Rating 30, Operating Temp. Range 302 Degrees F Max, Overall Length 2.94 in, Float Material 316 Stainless Steel, Float Length 1.59 in, Float Dia. 0.9 in, Stem Material 316 Stainless Steel, Stem Length 2 in, Height 2.0 in, Width -, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Stainless Steel
