Shop MADISON

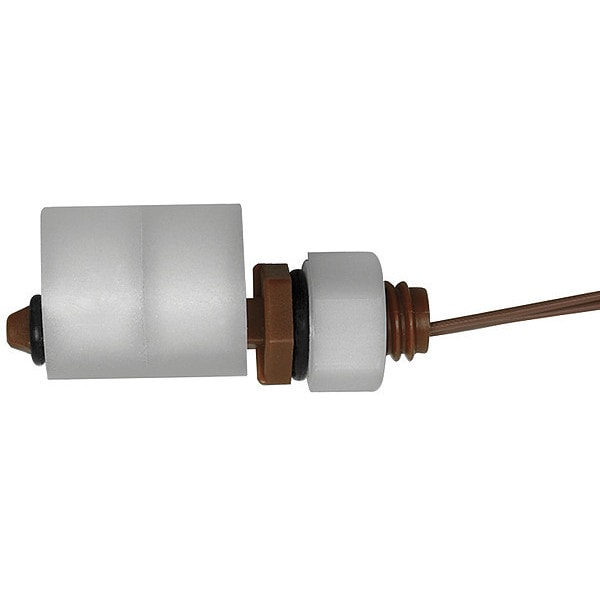

SPST Tank Liquid Level Switch Selectable 240VAC 50 psi

  • Mfr # M3326-SM
  • Zoro # G3975027
product price:
$
23.95
/ea

Key Features

Voltage
240VAC
Max. Pressure
50 psi
Conduit Size
3/8 in 16
Mounting
Side
Operating Temp. Range
221 Degrees F Max
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M3326-SM
Zoro #
G3975027
UPC #
-
Country of Origin
United States
Voltage
240VAC
Max. Pressure
50 psi
Item
Closed Liquid Level Switch
Mounting
Side
Operating Temp. Range
221 Degrees F Max
Switch Function
Selectable
Float Switch Float Material
Polypropylene
Float Material
Polypropylene
Standards
CE, NSF, UL Listed
Stem Material
Polypropylene
Electrical Connections
PTFE Jacketed Wire Leads
Contact Form
SPST
VA Rating
15
Max. Voltage
240 V
Max. Current
0.12 A
Float Specific Gravity
0.8
Features
Field Selectable NO or NC
Body Material
Polypropylene
Float Switch Contact Form
SPST
Series
M3326
Product Type
Closed Liquid Level Switch
Proof Pressure
50 psi
Operating Temperature - Maximum
221 Degrees F
Current Rating - Maximum
0.3 A
Electrical Connection
Pre-Wired Cable
Voltage Rating - Maximum
120 V AC
Minimum Media Specific Gravity
0.75
Mounting Style
Side
Switch Structure
SPST

Description

Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 3/8 in - 16 UNC, Max. Pressure 50 psi, VA Rating 15, Operating Temp. Range 221 Degrees F Max., Overall Length 1.85 in, Float Material Polypropylene, Float Length 0.63 in, Float Dia. 0.58 in, Stem Material Polypropylene, Stem Length 1.24 in, Height 1.85 in, Width 0.78 in, Contact Form SPST, Max. Current 0.12 A, Max. Voltage 240 V, Body Material Polypropylene, Conduit Size 3/8 in 16
