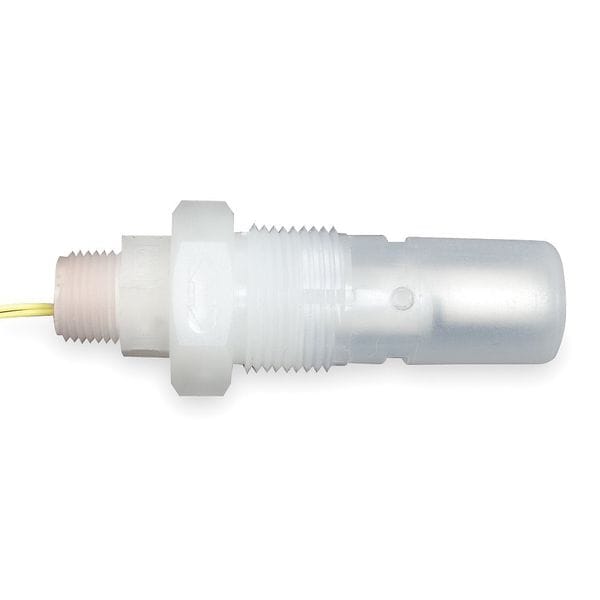

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

Madison SPST Tank Liquid Level Switch Selectable 240VAC 100 psi M9705
Tap to zoom
Hover or click to zoom
$74.29
  • Voltage: 240VAC
  • Max. Pressure: 100 psi
  • Float Switch Contact Form: SPST
See full product details
Orders over $75 ship free.

Total: $74.29

Madison #M9705 Specifications

  • Voltage: 240VAC
  • Max. Pressure: 100 psi
  • Float Switch Contact Form: SPST
  • Width: 1.5 in
  • Height: -
  • Standards: CE CSA NSF International UL
  • Electrical Connections: 22 ga PTFE Coated 24 in Leads
  • Mounting: Side
  • Tank Connection Size: 1/2 in x 1 in NPT
  • Conduit Size: 1/2 in x 1 in
  • Float Length: 2.11 in
  • Item: Tank Liquid Level Switch
  • Float Specific Gravity: 0.93
  • Contact Form: SPST
  • Body Material: Kynar
  • Stem Length: 2.84 in
  • Switch Function: Selectable
  • Overall Length: 4.0 in
  • VA Rating: 30
  • Stem Material: Kynar
  • Operating Temp. Range: 221 Degrees F Max.
  • Max. Voltage: 240
  • Float Dia.: 0.65 in
  • Max. Current: 0.28 A
  • Float Switch Float Material: Kynar
  • Float Material: Kynar
  • Product Type: Tank Liquid Level Switch
  • Country of Origin (subject to change): United States

Description

Tank Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in x 1 in NPT, Contact Form SPST, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Max. Pressure 100 psi, Overall Length 4.0 in, Float Material Kynar, Float Length 2.11 in, Float Dia. 0.65 in, Stem Material Kynar, Stem Length 2.84 in, Height -, Width 1.5 in, Max. Current 0.28 A, Max. Voltage 240, Body Material Kynar, Conduit Size 1/2 in x 1 in, Standards CE CSA NSF International UL
