Shop MADISON

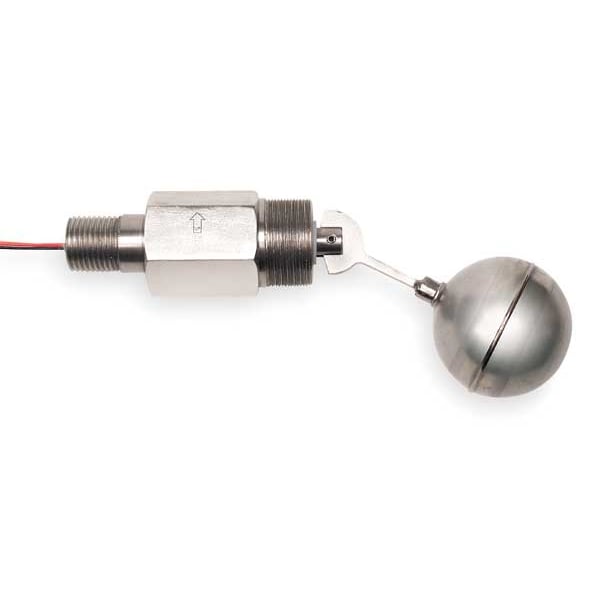

SPST Tank Liquid Level Switch Selectable 240VAC 900 psi

  • Mfr # M4190-HP

  • Zoro # G2731513

product price:  $249.99
/ea
Free Shipping & Returns

Key Features

Voltage
240VAC
Max. Pressure
900 psi
Float Dia.
2.04 in
Float Length
2.04 in
Switch Function
Selectable
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M4190-HP
Zoro #
G2731513
UPC #
094703915624
Country of Origin
United States

Dimensions

Float Dia.
2.04 in
Float Length
2.04 in
Stem Length
3.98 in
Tank Connection Size
1 in NPT
Conduit Size
1 in
Overall Length
3.98 in
Float Diameter
2.04 in
Stem Thread Size
1 in NPT
Wire Rope Length
3.98 in

Details

Voltage
240VAC
Max. Pressure
900 psi
Item
Alternator Closed Liquid Level Switch
Switch Function
Selectable
Electrical Connections
22 ga PTFE Coated 24 in Leads
Float Material
316 Stainless Steel
Max. Voltage
240 V
Stem Material
304 Stainless Steel
Float Switch Contact Form
SPST
Body Material
304 Stainless Steel
Operating Temp. Range
302 Degrees F Max.
Float Switch Float Material
Stainless Steel
Max. Current
1 A
Float Specific Gravity
0.5
Contact Form
1NO/1NC
VA Rating
100
Mounting
Side
Series
M4190-HP
Features
Corrosion Resistance
Product Type
Alternator Closed Liquid Level Switch
Proof Pressure
900 psi
Operating Temperature - Maximum
302 Degrees F
Minimum Media Specific Gravity
0.63
Current Rating - Maximum
0.28 A
Electrical Connection
Pre-Wired Cable
Voltage Rating - Maximum
24 V DC, 120 V AC
Switch Structure
SPDT
Mounting Style
Side

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1 in NPT, Max. Pressure 900 psi, VA Rating 100, Operating Temp. Range 302 Degrees F Max., Overall Length 3.98 in, Float Material 316 Stainless Steel, Float Length 2.04 in, Float Dia. 2.04 in, Stem Material 304 Stainless Steel, Stem Length 3.98 in, Height -, Width -, Contact Form 1NO/1NC, Max. Current 1 A, Max. Voltage 240 V, Body Material 304 Stainless Steel, Conduit Size 1 in
