Shop MADISON

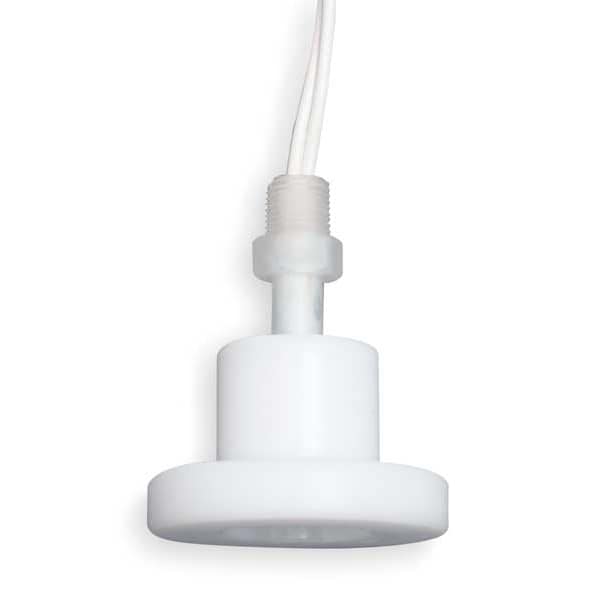

SPST Ultra Low Level Liquid Switch Open On Rise 240VAC 25 psi

  • Mfr # M9000-ULL-NC

  • Zoro # G1036271

product price:  $41.99
/ea

Key Features

Voltage
240VAC
Max. Pressure
25 psi
Max. Voltage
240 V
Float Switch Float Material
Kynar
Conduit Size
1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M9000-ULL-NC
Zoro #
G1036271
UPC #
-
Country of Origin
United States

Dimensions

Conduit Size
1/8 in
Overall Length
2.25 in
Tank Connection Size
1/8 in NPT
Height
2.25 in
Float Length
1.16 in
Float Dia.
1.88 in
Stem Length
1.63 in
Overall Height
2.25 in
Stem Thread Size
1/8 in NPT
Float Diameter
1 in
Wire Rope Length
2.25 in

Details

Voltage
240VAC
Max. Pressure
25 psi
Item
Closed Liquid Level Switch
Max. Voltage
240 V
Float Switch Float Material
Kynar
Body Material
Kynar
Standards
CE, NSF, UL Listed
Contact Form
SPST
Mounting
Vertical Open Tank
Electrical Connections
22 AWG PTFE Coated 24 in Leads
VA Rating
30
Operating Temp. Range
221 Degrees F Max
Max. Current
0.28 A
Float Switch Contact Form
SPST
Float Material
Kynar
Stem Material
Kynar
Float Specific Gravity
0.69
Switch Function
Open On Rise
Features
Solvent Resistance
Mounting Style
Vertical
Minimum Media Specific Gravity
0.94
Product Type
Closed Liquid Level Switch
Operating Temperature - Maximum
221 Degrees F
Current Rating - Maximum
0.28 A
Proof Pressure
25 psi
Electrical Connection
Pre-Wired Cable
Voltage Rating - Maximum
120 V AC, 240 V AC
Switch Structure
SPST

Description

Closed Liquid Level Switch, Switch Function Open On Rise, Vertical Open Tank Mounting, Tank Connection Size 1/8 in NPT, Max. Pressure 25 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max, Overall Length 2.25 in, Float Material Kynar, Float Length 1.16 in, Float Dia. 1.88 in, Stem Material Kynar, Stem Length 1.63 in, Height 2.25 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Kynar, Conduit Size 1/8 in, Standards CE, NSF, UL Listed
