Shop MADISON

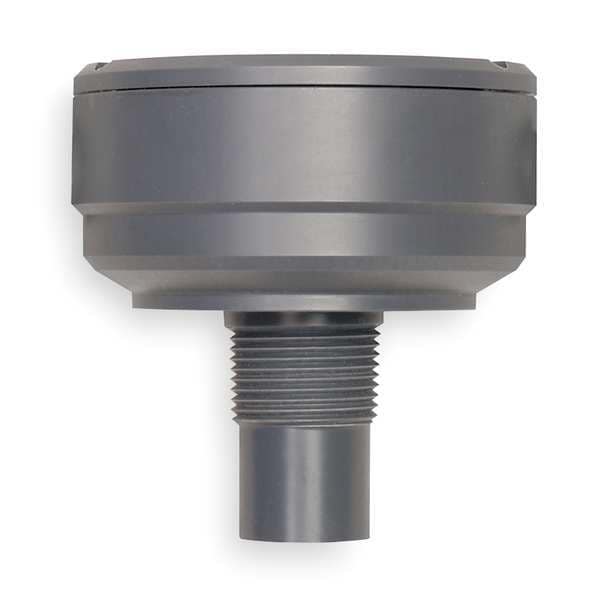

Ultrasonic Sensor, 1 In NPT, 24 VDC

  • Mfr # U3M-148

  • Zoro # G2917117

product price:  $880.99
/ea
Free Shipping & Returns

Key Features

Mounting
1 in NPT
Range
6 ft
Accuracy
+/-0.25% of Full Scale
Resolution
0.98 mm, 0.04 in
Overall Length
4.1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
U3M-148
Zoro #
G2917117
UPC #
-
Country of Origin
Canada

Dimensions

Overall Length
4.1 in
Overall Dia.
4 in
Overall Diameter
4 in
Connection Size
1 in
Antenna Diameter
1 in
Wire Rope Length
4.1 in

Details

Item
Noncontact Ultrasonic Level Sensor
Mounting
1 in NPT
Range
6 ft
Accuracy
+/-0.25% of Full Scale
Resolution
0.98 mm, 0.04 in
Input Voltage
24V DC
Output
4 to 20ma
Beam Angle
12 Degrees
Operating Frequency
148 kHz
Enclosure Material
PVC
Standards
CE Certified
Enclosure Rating
NEMA 6P
Dead Band
4 in
Gasket Material
Buna-N
Voltage - Maximum
30V DC
Output Voltage Range
4 to 20mA
Connection Type
NPT
Media Temperature - Minimum
-40 Degrees F
Operating Pressure - Maximum
72.5 psi
Spatial Resolution
0.03 in
Output Wire Configuration
4-Wire
For Media Type
Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid
Media Temperature - Maximum
140 Degrees F

Description

Noncontact Ultrasonic Level Sensor, For Media Type Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid, Antenna Diameter 1 in, Range 6 ft, Connection Size 1 in, Connection Type NPT, Accuracy +/-0.25 Percent of Full Scale, Voltage - Maximum 30V DC, Dead Band 4 in, Beam Angle 12 Degrees , Operating Frequency 148 kHz, Spatial Resolution 0.03 in, Operating Pressure - Maximum 72.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 140 Degrees F
