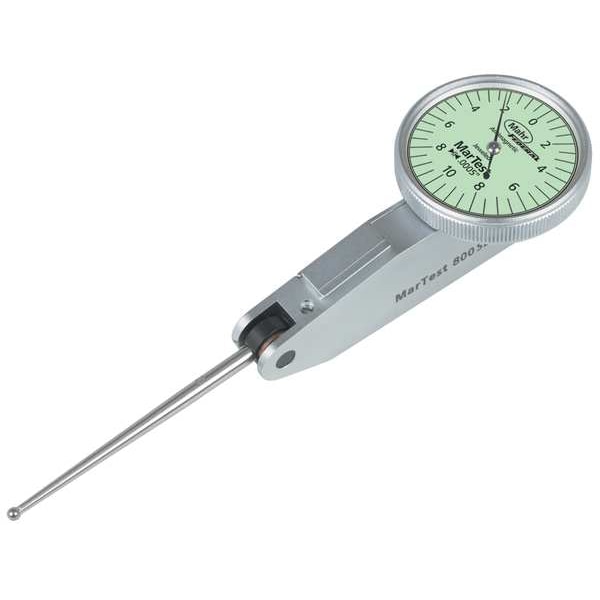

Dial Test Indicator, Swl Hd, 0 to 0.020 In

  • Mfr # 4306950

  • Zoro # G3458953

product price:
$
215.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0005 in
Range
0 in to 0.02 in
Features
Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed with O-Ring
Finish
Matt Chrome-Plated
Accuracy
0.0004 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4306950
Zoro #
G3458953
UPC #
712155480971
Country of Origin
Czechia

Dimensions

Contact Point Length
1-1/2 in
Dial Size
1.09 in
Contact Point Dia.
0.08 in
Stem Thread Size
M7
Stylus Length
41.24 mm
Dimension Type
Inch
Contact Point Diameter
0.08 in

Details

Graduations
0.0005 in
Range
0 in to 0.02 in
Features
Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed with O-Ring
Finish
Matt Chrome-Plated
Accuracy
0.0004 in
Resolution
0.02"
Includes
3/8 in Mounting Stem, Spanner Wrench
Indicator Style
Swivel Head
Contact Point Style
Ball
Reading
Balanced
Bearing Type
Jeweled
Series
MarTest 801 SL
Dial Reading
10-0-10
Item
Horizontal Dial Test Indicator
Range per Revolution
0.02 in
Standards
DIN 2270
Dial Color
Green
Long Form Calibration Certificate
No
Mounting Style
Dovetail
Includes Case
Yes
Non-Conductive Tip
No
Hysteresis
5.08 micronm
Max. Measuring Force
0.07 N
Test Indicator Style
Horizontal
Shock Resistant
Yes
Contact Point Shape
Ball
Swivel Angle
110 Degrees
Contact Point Material
Carbide
Includes Dovetail Mount Attachments
Yes
Number of Indicators
1
Non-Magnetic Tip
Yes
Repeatability
+/-0.0001 in
Operation Type
Lever-Style
Minimum Measurement - Inch
0 in
Maximum Measurement - Inch
0.02 in
Case Type
Case
Included Certification
Certificate of Conformance
Product Type
Horizontal Dial Test Indicator
Maximum Measuring Force
0.07 N
Inches Measured - Minimum
0 in
Inches Measured - Maximum
0.02 in

Description

Item Horizontal Dial Test Indicator, Range 0 in to 0.02 in, Graduations 0.0005 in, Long Form Calibration Certificate No, Contact Point Dia. 0.08 in, Dial Color Green, Dial Reading 10-0-10, Dial Size 1.09 in, Dimension Type Inch, Included Certification Certificate of Conformance, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.02 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Lever-Style, Range per Revolution 0.02 in, Series MarTest 801 SL
