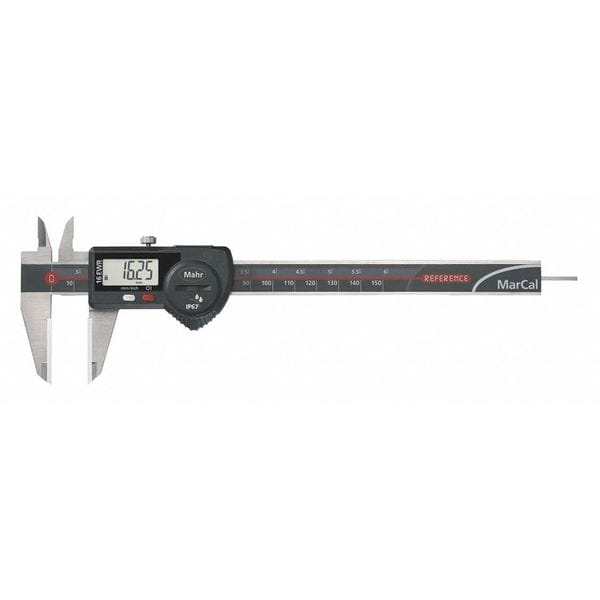

Mahr Digital Caliper, 0.001"/0.03mm Accuracy 4103072 - main

Digital Caliper, 0.001"/0.03mm Accuracy

  • Mfr # 4103072

  • Zoro # G5522148

product price: $489.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4103072
Zoro #
G5522148
UPC #
-
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Battery Size
CR2032
Jaw Depth - Upper Jaw
5/8 in
Measures Inside Dimension
Yes
Dimension Type
Inch/Metric
Measures Outside Dimension
Yes
Depth Rod Shape
Round
Measures Depth
Yes

Details

Item
Ceramic Jaw 4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Immediate Measurement Due to The Reference System, Locking Screw, Lapped Guide Way
Standards
DIN 862
Includes
Ceramic Jaw Option, Round Depth Rod
Long Form Calibration Certificate
No
Dust Resistant
Yes
Includes Battery
Yes
With Locking Nut
Yes
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Minimum Measurement - Inch
0 in
Data Output Type
Cabled
Jaw Actuation Type
Slide
Jaw Shape
Standard
Maximum Measurement - mm
150 mm
Jaw Material
Ceramic
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Measurements
4-Way
Minimum Measurement - mm
0 mm
Maximum Measurement - Inch
6 in
Display Type
Analog, 8.5 mm Digit Height
Coolant Resistant
Yes
Left-Handed Operation
No
Minimum Measurement - Fractional Inch
0 in
Data Output Connection Type
USB; RS232; Digimatic
Measures Step
Yes
Range
0 in to 6 in, 0 to 150 mm
Water Resistant
Yes
Inches Measured - Maximum
6 in
Included Certification
Certificate of Conformance
Data Output Wired Connection
USB; RS232; Digimatic
Measurement Type
Depth, Inside, Outside, Step
Product Type
Digital Caliper
Millimeters Measured - Minimum
0 mm
Battery Type
CR2032
Millimeters Measured - Maximum
150 mm
Inches Measured - Minimum
0 in

Description

Ceramic Jaw 4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Immediate Measurement Due to The Reference System, Locking Screw, Lapped Guide Way, Standards DIN 862
