  13. Digital Caliper, 40mm Jaw D, SS, 150mmRange

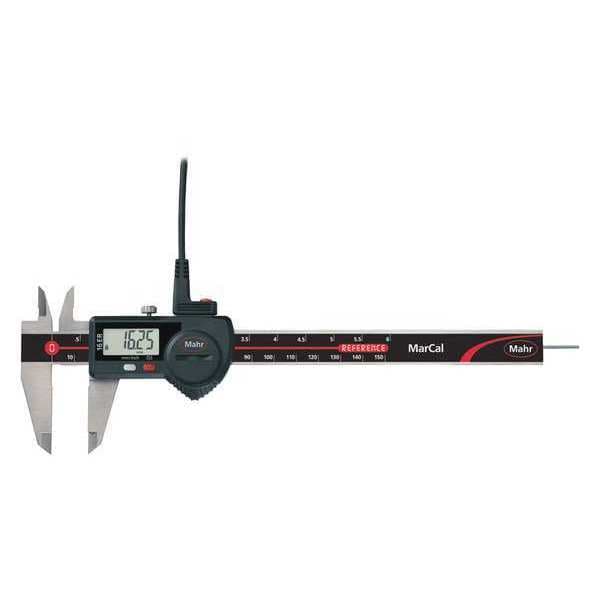

Mahr Digital Caliper, 40mm Jaw D, SS, 150mmRange 4103014 - main

Digital Caliper, 40mm Jaw D, SS, 150mmRange

  • Mfr # 4103014

  • Zoro # G2014218

product price: $199.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103014
Zoro #
G2014218
UPC #
712155480544
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Dimension Type
Inch/Metric
Depth Rod Shape
Round
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes
Measures Depth
Yes
Battery Size
CR2032
Jaw Depth - Upper Jaw
5/8 in

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
Caliper Grouping
Digital Caliper
Standards
DIN 862
Long Form Calibration Certificate
No
Included Certification
Certificate of Conformance
Includes Battery
Yes
Minimum Measurement - mm
0 mm
Data Output Connection Type
USB; RS232; Digimatic
Measurements
4-Way
With Locking Nut
Yes
Jaw Material
Stainless Steel
Includes Case
Yes
Dust Resistant
No
Measures Step
Yes
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Left-Handed Operation
No
Jaw Actuation Type
Slide
Jaw Shape
Standard
Maximum Measurement - mm
150 mm
Minimum Measurement - Inch
0 in
Range
0 in to 6 in, 0 to 150 mm
Water Resistant
No
Coolant Resistant
No
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Display Type
Analog, 8.5 mm Digit Height
Minimum Measurement - Fractional Inch
0 in
Data Output Type
Cabled
Maximum Measurement - Inch
6 in
Battery Type
CR2032
Data Output Wired Connection
USB; RS232; Digimatic
Millimeters Measured - Minimum
0 mm
Product Type
Digital Caliper
Measurement Type
Depth, Inside, Outside, Step
Inches Measured - Minimum
0 in
Inches Measured - Maximum
6 in
Millimeters Measured - Maximum
150 mm

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
