Mapp Caster

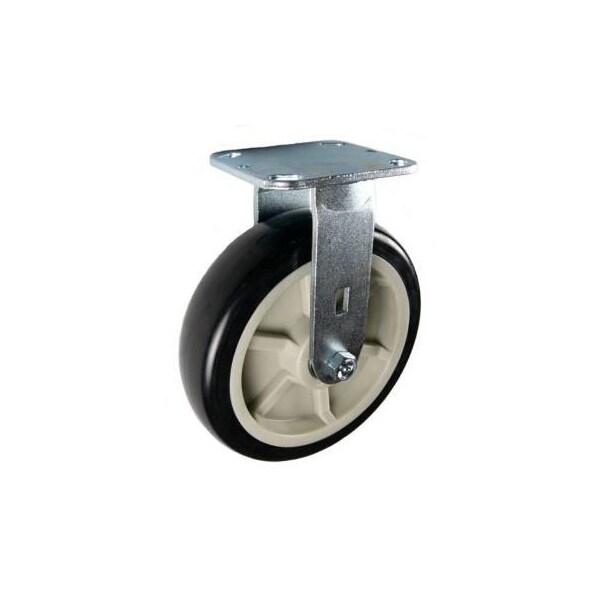

8"X2" Patriot Poly. on Polyolefin Core Wheel Rgd Caster, 1,200 Lbs Cap

Mapp Caster 8"X2" Patriot Poly. on Polyolefin Core Wheel Rgd Caster,  1,200 Lbs Cap 146PRX820R
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$38.42
  • Caster Sub-Type: Rigid
  • Overall Height: 9-1/2 in
  • Wheel Bearing Type: Precision Ball
See full product details
Orders over $75 ship free.
Total: $38.42

Mapp Caster #146PRX820R Specifications

  • Caster Sub-Type: Rigid
  • Overall Height: 9-1/2 in
  • Wheel Bearing Type: Precision Ball
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Frame Finish: Bright Zinc Plated
  • Caster Frame Material: Cold Rolled Steel
  • Wheel Color: Black
  • Wheel Type: Polyurethane on Polyolefin
  • Load Capacity: 1,200 lb
  • Weight: 4.4 lb
  • Temperature Range: -20°F to 180°F
  • Tread Width: 2 in
  • Wheel/Tread Hardness: Shore D 60 (+/-5)
  • Wheel Diameter: 8 in
  • Mounting Plate: 4 in X 4-1/2 in
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Polyurethane on polyolefin wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on polyolefin wheels are going to be the most economically priced of the polyurethane wheels and great for general industrial applications.These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Restrictions and Compliance

This item has been restricted from sale in the following states: No
