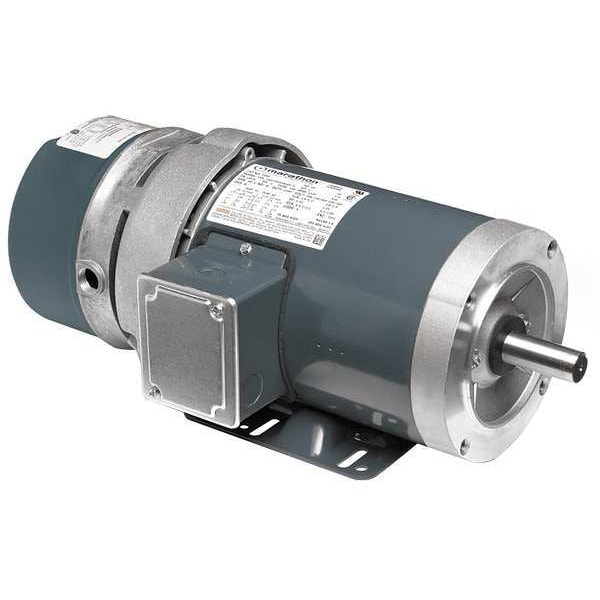

Brake Motor, 230/460V, 7-1/2 HP, 19.2/9.6A
Mfr # 213TTTL16038
Zoro # G7408917
product price: $5,385.99
/ea
Additional $140.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Non-Ventilated
HP
7 1/2 hp
Nameplate RPM
1,770 RPM
Frame
213TC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
213TTTL16038
Zoro #
G7408917
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1 3/8 in
Length Less Shaft
23 15/16 in
Shaft Length
3 1/8 in
Overall Length
16 13/16 in
Description
Brake Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, 19.2/9.6 A Full Load Amps, 213TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base
