This item is Discontinued.

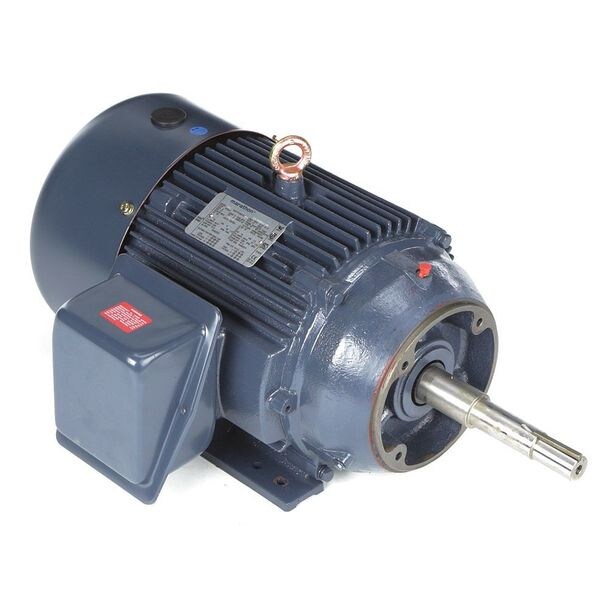

Marathon CC Pump Motor, 3-Phase, TEFC, 15HP, 230/460V 254TTFCD6012

CC Pump Motor, 3-Phase, TEFC, 15HP, 230/460V (Discontinued)

  • Mfr # 254TTFCD6012
  • Zoro # G5255686
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
254TTFCD6012
Zoro #
G5255686
UPC #
-
Country of Origin
China

Dimensions

Shaft Length
8 3/16 in
Overall Length
29 1/2 in
Shaft Dia.
1 1/4 in
Length Less Shaft
21 3/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
15
RPM Range
3001-3600
Nameplate RPM
3538
Voltage
230/460
Frame
254JP
Motor Mounting Type
Face
Motor Service Factor
1.15
Ins. Class
F
Hz
60/50
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Motor Shaft Design
JP Threaded
Motor Frame Material
Cast Iron
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nominal Efficiency
93.6%
Motor Bearings
Ball
Standards
UL Listed, CSA Certified, CE
Phase
3
Motor Sub Application
Close-Coupled Pump
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Frame Material
Cast Iron
Voltage Compatibility
460, 230/460, 220-230/460
CC Number
CC003A
Motor Efficiency Group
NEMA Premium Efficient
Motor Application
Pump
Full Load Amps
35.0/17.5

Description

Close-Coupled Pump Motor, 15, 3538, 230/460, 254JP, Shaft Dia. 1 1/4 in, 1.15, 3-Phase, Totally Enclosed Fan-Cooled, 3001-3600, Face, Voltage Compatibility 460, 230/460, 220-230/460, Phase 3, Pump, Close-Coupled Pump, Motor Thermal Protection None, CC Number CC003A, Continuous, 60/50, 35.0/17.5, Ins. Class F, Length Less Shaft 21 3/8 in, 40 Degrees C, Ball, NEMA Premium Efficient, Motor Frame Material Cast Iron, JP Threaded, CW/CCW, Nominal Efficiency 93.6 Percent, Overall Length 29 1/2 in
