This item is Discontinued.

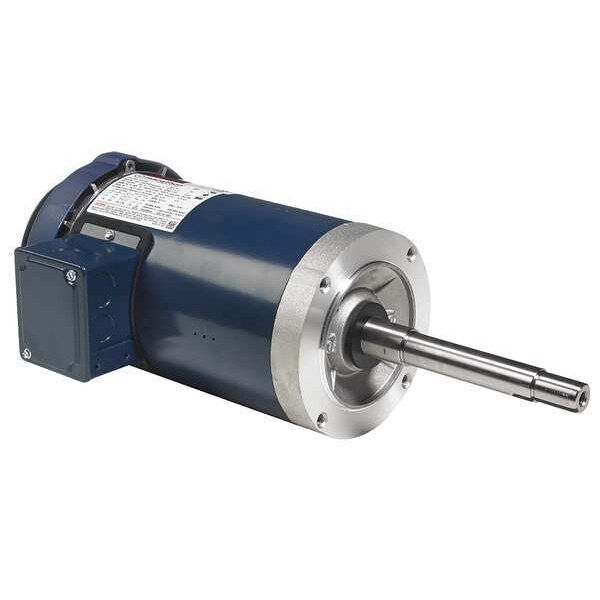

Marathon CC Pump Motor, 3-Phase, TEFC, 1HP, 575V, 60Hz 143TTFR16045

CC Pump Motor, 3-Phase, TEFC, 1HP, 575V, 60Hz (Discontinued)

  • Mfr # 143TTFR16045
  • Zoro # G5255117
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
143TTFR16045
Zoro #
G5255117
UPC #
-
Country of Origin
Unknown

Dimensions

Shaft Length
7 5/16 in
Overall Length
19 7/8 in
Shaft Dia.
7/8 in
Length Less Shaft
12 9/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
1
RPM Range
1701-1800
Nameplate RPM
1765
Voltage
575
Frame
143JPV
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Thermal Protection
None
Motor Application
Pump
Ins. Class
F
CC Number
CC003A
Full Load Amps
1.3
Motor Frame Material
Rolled Steel
Frame Material
Rolled steel
Motor Shaft Design
JP Threaded
Duty
Continuous
Hz
60
Motor Shaft Rotation
CW/CCW
Phase
3
Voltage Compatibility
575
Standards
UL Recognized, CSA Certified, CE
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
Close-Coupled Pump
Nominal Efficiency
85.5%
Motor Bearings
Ball
Motor Efficiency Group
NEMA Premium Efficient
Green Certification or Other Recognition
NEMA Premium(R) Rated
Shaft Type
JP Threaded

Description

Close-Coupled Pump Motor, CC Number CC003A, Frame 143JPV, Hz 60, Full Load Amps 1.3, HP 1, Ins. Class F, Length Less Shaft 12 9/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Rolled Steel
