Shop MARATHON

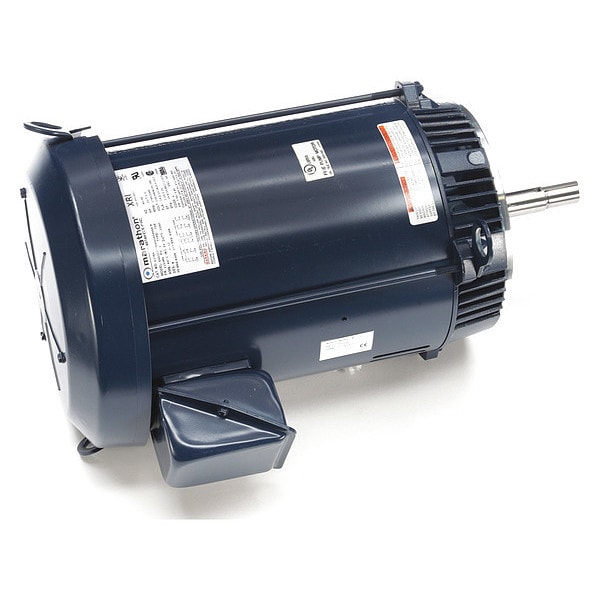

Close-Coupled Pump Motor, 10 HP, 1765 rpm

  • Mfr # 215TTDWD16349

  • Zoro # G7410256

product price:
$
1,276.99
/ea
Additional $60.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
10 hp
RPM Range
1,701-1,800
Nameplate RPM
1,765
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
215TTDWD16349
Zoro #
G7410256
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
16 3/16 in
Shaft Length
4 1/4 in
Overall Length
20 7/16 in
Body Dia.
9.5 in
Height
11 3/8 in
Bolt Circle Dia.
7 1/4 in
Shaft Diameter
7/8 in
Bolt Circle Diameter
7 1/4 in
Body Diameter
9.5 in
Frame Size
213JMV
Wire Rope Length
20 7/16 in
Length
20 7/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
10 hp
RPM Range
1,701-1,800
Nameplate RPM
1,765
Voltage
230/460V AC
Frame
213JMV
Motor Mounting Type
Face
Motor Service Factor
1.15
Standards
CE Mark, CSA Certified, UL Recognized
Motor Frame Material
Steel
Motor Application
Pump
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
91.7 %
Hz
60/50
Ins. Class
B
Full Load Amps
26.2/13.1 A
Motor Efficiency Group
NEMA Premium Efficient
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Duty
Continuous
Inverter Rated
Not Inverter Rated
CC Number
CC003A
Motor Enclosure Design
Open Dripproof
Motor Shaft Design
Keyed
Frame Material
Steel
Motor Sub Application
Close-Coupled Pump
Motor Bearings
Ball
Motor Thermal Protection
None
Phase
Three
Motor Shaft Rotation
CW/CCW
Includes
Drip Cover
Green Certification or Other Recognition
NEMA Premium(R) Rated
Service Factor @ 50Hz
1.15
NEMA Design
B
Duty Cycle
Continuous
No. of Speeds
1
Conduit Box Location
Exterior
Voltage @ 50Hz
460
RPM @ 50Hz
1,765
Weight
134 lb
HP @ 50Hz
10
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
Vertical Shaft Down
Full Load Amps @ 50Hz
26.2/13.1
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1, F2
Ambient Temperature - Maximum
40 Degrees C
Frequency
60/50 Hz
Nameplate Horsepower @ 50 Hz
10 hp
Nameplate Service Factor @ 60 Hz
1.15
Product Type
Pump Motor
Full Load Current @ 60 Hz
26.2/13.1 A
Number of Speeds
1
Shaft Thread Type
JM
Nameplate Service Factor @ 50 Hz
1.15
Nameplate RPM @ 50 Hz
1,765 RPM
Shaft Design
Keyed
Insulation Class
B
Mounting Position
Vertical Shaft Down
Bearing Type
Ball
Application
Pump
Nameplate Voltage @ 50 Hz
460V AC
NEMA Design Class
B
Motor Enclosure Type
Open Drip Proof
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 50 Hz
26.2/13.1 A

Description

Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JMV, Hz 60/50, Full Load Amps 26.2/13.1, Full Load Amps @ 50Hz 26.2/13.1, Height 11 3/8 in, HP 10, HP @ 50Hz 10, Includes Drip Cover, Ins. Class B, Inverter Rated Not Inverter Rated, Length Less Shaft 16 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
