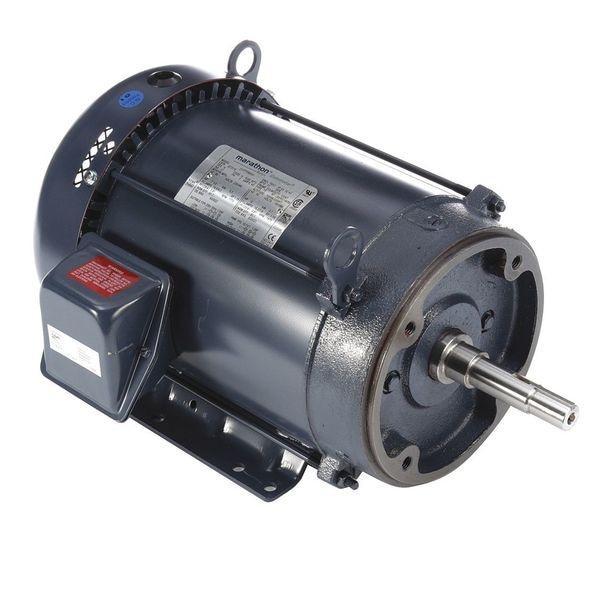

Close-Coupled Pump Motor, 18.6/9.3A
Mfr # 213TTFBD6031
Zoro # G6418469
product price: $1,354.99
/ea
Item requires special delivery charges. A $80.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
7 1/2
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
213TTFBD6031
Zoro #
G6418469
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Length Less Shaft
16 in
Overall Length
20 1/4 in
Body Dia.
9.5 in
Bolt Circle Dia.
7 1/4 in
Height
11 in
Description
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 213JM, Hz 60 Hz, Full Load Amps 19.0/9.5, Height 11 in, HP 7 1/2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
