Shop DART CONTROLS

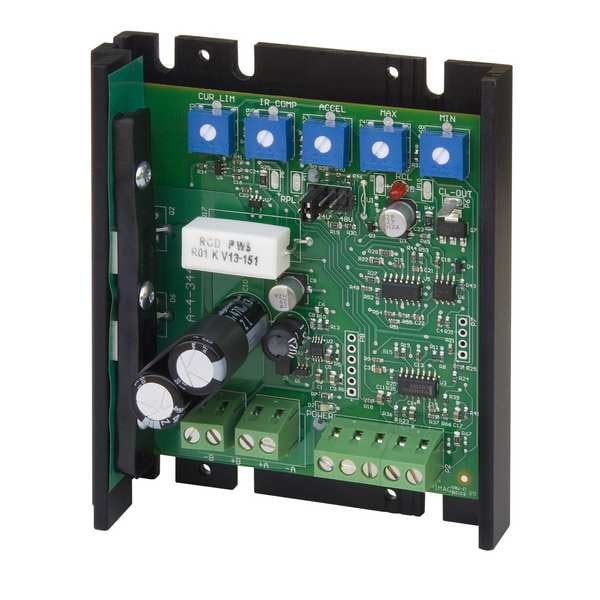

DC SpdControl, 12/24/36/48VDC, 10A, Chassis

  • Mfr # 65E10C

  • Zoro # G9972907

product price:
$
231.20
/ea
Free Shipping & Returns

Key Features

Enclosure
Chassis
Max. Amps
10 A
Voltage Output
12 to 48V DC
Speed Range
30:1
Rotation
Single Direction
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
65E10C
Zoro #
G9972907
UPC #
-
Country of Origin
United States

Dimensions

Width
4.25 in
Height
3.6 in
Depth
1.68 in
Overall Height
4.25 in
Overall Depth
1.3 in
Overall Width
3.62 in

Details

Item
DC Speed Control
Enclosure
Chassis
Max. Amps
10 A
Voltage Output
12 to 48V DC
Speed Range
30:1
Rotation
Single Direction
DC Input Voltage
12-48V DC
DC Speed Control
PWM
Operating Temp.
-30 Degrees to 60 Degrees C
Includes
Speedpot and Product Manual
Current/Torque Limit
Adjustable
Speed Regulation
+/-1% of Base Speed
IR Compensation
Adjustable
Power On Light
Yes
Linear Deceleration
Fixed 0.5 sec
Mount Type
Chassis
Standards
RoHS
HP @ Higher Volts
1/2 hp
Follower Circuit
No
Linear Acceleration
Adjustable 0 to 10 sec
HP @ Lower Volts
1/50 to 1/16 hp
For Use With
Commercial, Industrial
Display Type
LED
Series
Series 65
Maximum Linear Deceleration
0.5 sec
Maximum Linear Acceleration
10 sec
Higher Voltage Motor Output Power
1/2 hp
Lower Voltage Motor Output Power
1/50 to 1/6 hp
Maximum Current
10 A
Minimum Linear Acceleration
0 sec
Enclosure Type
Open
Operating Temperature
-10 Degrees to 45 Degrees C
Product Type
DC Speed Control
Speed Ratio
30:1
Low Voltage Output Power - Minimum
1/50 hp
High Voltage Output Power - Maximum
1/2 hp
Output Voltage
12-48V DC
High Voltage Output Power - Minimum
1/2 hp
Linear Deceleration - Maximum
0.5 sec
Linear Acceleration - Maximum
10 sec
Low Voltage Output Power - Maximum
1/6 hp
Output Type
Solid State
DC Output Current
10 A
Linear Acceleration - Minimum
0 sec
Torque Limit
Adjustable

Description

DC Speed Control, DC Speed Control PWM, Lower Voltage Motor Output Power 1/50 to 1/6 hp, AC Input Voltage Not Applicable, DC Input Voltage 12-48V DC, Voltage Output 12 to 48V DC, Speed Range 30:1, Rotation Single Direction, External Switches Not Applicable
