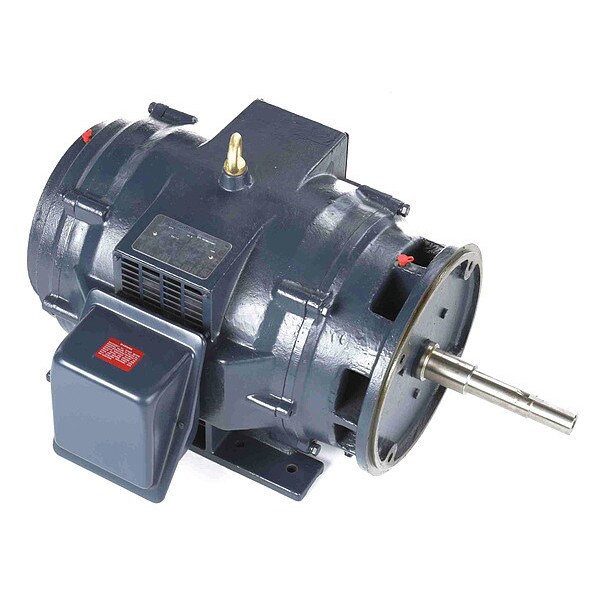

Close-Coupled Pump Motor, 20 HP
Mfr # 286TTDBD6085
Zoro # G6420955
product price: $3,423.99
/ea
Item requires special delivery charges. A $230.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
20
RPM Range
1,101-1,200
Nameplate RPM
1,180
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
286TTDBD6085
Zoro #
G6420955
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
30 15/16 in
Shaft Length
8 1/2 in
Length Less Shaft
22 1/2 in
Shaft Dia.
1 1/4 in
Bolt Circle Dia.
11 in
Height
15 in
Description
Close-Coupled Pump Motor, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 286JP, Hz 60 Hz, Full Load Amps 52.5/26.3, Height 15 in, HP 20, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 22 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
