Product Information
MFR #
286TTDBD6092
Zoro #
G6421366
UPC #
-
Country of Origin
China
Dimensions
Shaft Length
5 1/4 in
Overall Length
27 1/6 in
Length Less Shaft
21 13/16 in
Shaft Dia.
1 1/4 in
Description

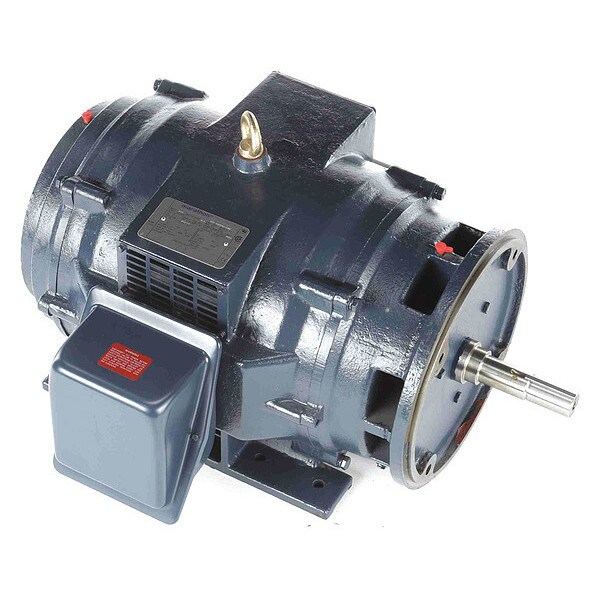

Close-Coupled Pump Motor, 20, 1180, 575, 286JM, Shaft Dia. 1 1/4 in, 1.15, 3-Phase, Open Dripproof, 1101-1200, Face/Base, Voltage Compatibility 575, Phase 3, Pump, Close-Coupled Pump, Motor Thermal Protection None, CC Number CC003A, Continuous, 60, 21.6, Ins. Class F, Inverter Rated Yes, Length Less Shaft 21 13/16 in, 40 Degrees C, Ball, NEMA Premium Efficient, Motor Frame Material Cast Iron, JM Threaded, CW/CCW, Nominal Efficiency 94.1 Percent, Overall Length 27 1/6 in, Shaft Length 5 1/4 in
