  11. Close-Coupled Pump Motor, 25 HP, 575V

This item is Discontinued.

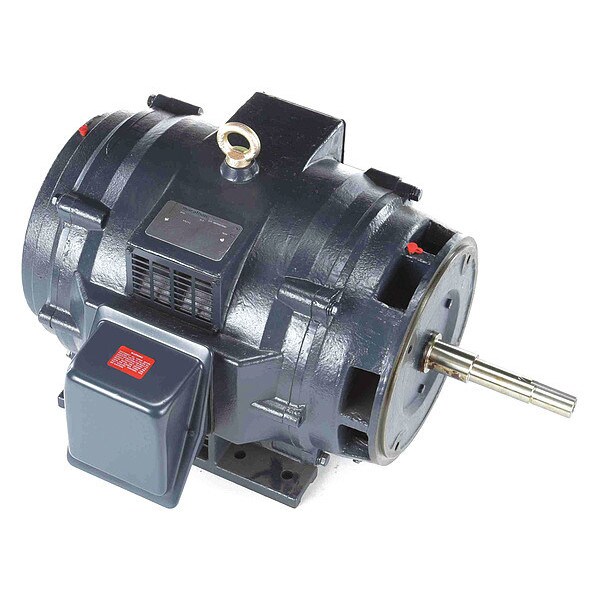

Marathon Close-Coupled Pump Motor, 25 HP, 575V 324TTDBD6095

Close-Coupled Pump Motor, 25 HP, 575V (Discontinued)

  • Mfr # 324TTDBD6095
  • Zoro # G6420928
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
324TTDBD6095
Zoro #
G6420928
UPC #
-
Country of Origin
China

Dimensions

Length Less Shaft
23 11/16 in
Overall Length
31 13/16 in
Shaft Length
8 1/8 in
Shaft Dia.
1 1/4 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
25
RPM Range
1101-1200
Nameplate RPM
1190
Voltage
575
Frame
324JP
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Duty
Continuous
Motor Sub Application
Close-Coupled Pump
CC Number
CC003A
Motor Bearings
Ball
Phase
3
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Cast Iron
Frame Material
Cast Iron
Inverter Rated
Yes
Voltage Compatibility
575
Motor Shaft Design
JP Threaded
Full Load Amps
27.2
Hz
60
Motor Thermal Protection
None
Nominal Efficiency
95.4%
Motor Application
Pump
Motor Efficiency Group
NEMA Premium Efficient
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Standards
UL Recognized (E49747), CSA Certified (LR2025)
Max. Ambient Temp.
40 Degrees C

Description

Close-Coupled Pump Motor, 25, 1190, 575, 324JP, Shaft Dia. 1 1/4 in, 1.15, 3-Phase, Open Dripproof, 1101-1200, Face/Base, Voltage Compatibility 575, Phase 3, Pump, Close-Coupled Pump, Motor Thermal Protection None, CC Number CC003A, Continuous, 60, 27.2, Ins. Class F, Inverter Rated Yes, Length Less Shaft 23 11/16 in, 40 Degrees C, Ball, NEMA Premium Efficient, Motor Frame Material Cast Iron, JP Threaded, CW/CCW, Nominal Efficiency 95.4 Percent, Overall Length 31 13/16 in, Shaft Length 8 1/8 in
