  6. Close-Coupled Pump Motor, 3 HP, 575V, 3.5A

This item is Discontinued.

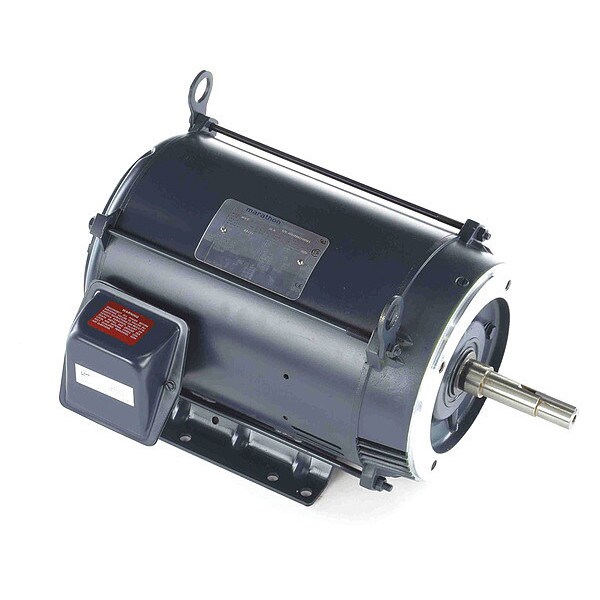

Marathon Close-Coupled Pump Motor, 3 HP, 575V, 3.5A 213TTDBD6092

Close-Coupled Pump Motor, 3 HP, 575V, 3.5A (Discontinued)

  • Mfr # 213TTDBD6092
  • Zoro # G6421460
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
213TTDBD6092
Zoro #
G6421460
UPC #
-
Country of Origin
China

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
15 in
Shaft Length
4 1/4 in
Overall Length
19 1/4 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
3
RPM Range
1101-1200
Nameplate RPM
1180
Voltage
575
Frame
213JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Hz
60
Full Load Amps
3.5
Duty
Continuous
CC Number
CC003A
Nominal Efficiency
89.5%
Motor Sub Application
Close-Coupled Pump
Frame Material
Rolled steel
Motor Bearings
Ball
Voltage Compatibility
575
Motor Application
Pump
Phase
3
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Open Dripproof
Standards
UL Recognized (E49747), CSA Certified (LR2025)
Motor Shaft Design
JM Threaded
Motor Thermal Protection
None
Ins. Class
F
Motor Frame Material
Rolled Steel
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
NEMA Premium Efficient
Inverter Rated
Yes

Description

Close-Coupled Pump Motor, 3, 1180, 575, 213JM, Shaft Dia. 7/8 in, 1.15, 3-Phase, Open Dripproof, 1101-1200, Face/Base, Voltage Compatibility 575, Phase 3, Pump, Close-Coupled Pump, Motor Thermal Protection None, CC Number CC003A, Continuous, 60, 3.5, Ins. Class F, Inverter Rated Yes, Length Less Shaft 15 in, 40 Degrees C, Ball, NEMA Premium Efficient, Motor Frame Material Rolled Steel, JM Threaded, CW/CCW, Nominal Efficiency 89.5 Percent, Overall Length 19 1/4 in, Shaft Length 4 1/4 in
