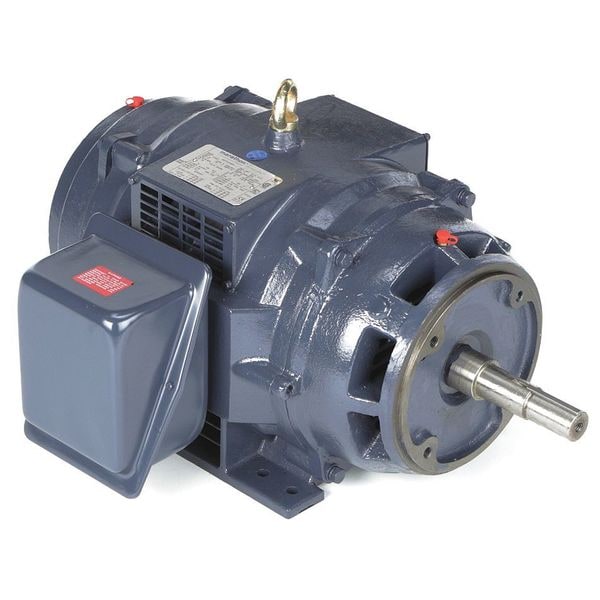

Close-Coupled Pump Motor, 3-Phase, 25 HP

  • Mfr # 256TTDBD6007
  • Zoro # G9824211
product price:
$
2,386.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
25 hp
RPM Range
3,001-3,600
Nameplate RPM
3,555
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
256TTDBD6007
Zoro #
G9824211
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
5 1/4 in
Length Less Shaft
20 3/4 in
Shaft Dia.
1 1/4 in
Overall Length
26 in
Body Dia.
11.8 in
Height
13 1/2 in
Bolt Circle Dia.
7 1/4 in
Frame Size
256JM
Shaft Diameter
1 1/4 in
Bolt Circle Diameter
7 1/4 in
Body Diameter
11.8 in
Wire Rope Length
26 in
Length
26 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
25 hp
RPM Range
3,001-3,600
Nameplate RPM
3,555
Voltage
230V AC, 460V AC
Frame
256JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Inverter Rated
Inverter Rated
Nominal Efficiency
91.7 %
Standards
CE Mark, CSA Certified, UL Recognized
Full Load Amps
59.5/29.7 A
CC Number
CC003A
Hz
60 Hz
Ins. Class
F
Frame Material
Steel
Duty
Continuous
Motor Bearings
Ball
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Phase
Three
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Motor Shaft Design
Keyed
Motor Frame Material
Steel
Motor Application
Pump
Motor Efficiency Group
NEMA Premium Efficient
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Open Dripproof
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Weight
291 lb
NEMA Design
B
Motor Mounting Position
Horizontal
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Conduit Box Position
F1, F2
Shaft Type
Keyed
Number of Speeds
1
Full Load Current @ 60 Hz
59.5/29.7 A
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Insulation Class
F
Product Type
Pump Motor
Shaft Design
Keyed
Efficiency Rating
Premium Efficiency (IE3)
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Application
Pump
Bearing Type
Ball
Constant Torque Rating
2:1 Constant Torque
Shaft Thread Type
JM
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal

Description

Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JM, Hz 60 Hz, Full Load Amps 59.5/29.7, Height 13 1/2 in, HP 25, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
