Shop MARATHON

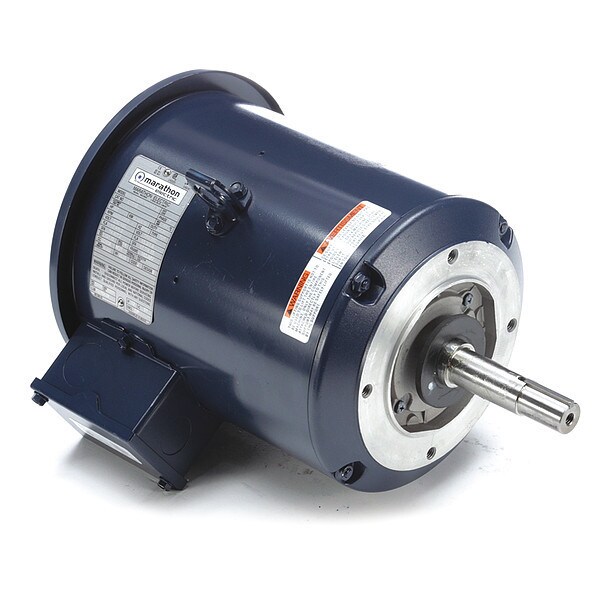

Close-Coupled Pump Motor, 5 HP, 3500 rpm

  • Mfr # 182TTDW16021
  • Zoro # G7410046
product price:
$
790.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5 hp
RPM Range
1,701-1,800
Nameplate RPM
3,500
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTDW16021
Zoro #
G7410046
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
4 1/4 in
Length Less Shaft
10 11/16 in
Shaft Dia.
7/8 in
Overall Length
14 15/16 in
Bolt Circle Dia.
6 1/2 in
Frame Size
182JMV
Bolt Circle Diameter
6 1/2 in
Shaft Diameter
7/8 in
Wire Rope Length
14 15/16 in
Length
14 15/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
5 hp
RPM Range
1,701-1,800
Nameplate RPM
3,500
Voltage
230V AC, 460V AC
Frame
182JMV
Motor Mounting Type
Face
Motor Service Factor
1.15
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Full Load Amps
12.4/6.2 A
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
CC Number
CC003A
Phase
Three
Motor Efficiency Group
NEMA Premium Efficient
Motor Sub Application
Close-Coupled Pump
Motor Application
Pump
Motor Thermal Protection
None
Ins. Class
F
Motor Bearings
Ball
Motor Enclosure Design
Open Dripproof
Standards
CE Mark, CSA Certified, UL Recognized
Nominal Efficiency
86.5 %
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Hz
50/60 Hz
Inverter Rated
Not Inverter Rated
Motor Shaft Design
Keyed
Motor Frame Material
Steel
Includes
Drip Cover
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
Conduit Box Location
Exterior
HP @ 50Hz
5
Weight
46 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
12.4/6.2
Voltage @ 50Hz
460
Service Factor @ 50Hz
1.15
RPM @ 50Hz
3,500
NEMA Design
B
Motor Mounting Position
Vertical Shaft Down
Usable @ 208V
Not Usable at 208V
Conduit Box Position
F1
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Nameplate Service Factor @ 50 Hz
1.15
Motor Enclosure Type
Open Drip Proof
Nameplate Voltage @ 50 Hz
460V AC
Number of Speeds
1
Product Type
Pump Motor
Shaft Thread Type
JM
NEMA Design Class
B
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60/50 Hz
Application
Pump
Shaft Design
Keyed
Bearing Type
Ball
Full Load Current @ 50 Hz
12.4/6.2 A
Nameplate RPM @ 50 Hz
3,500 RPM
Nameplate Horsepower @ 50 Hz
5 hp
Efficiency Rating
Premium Efficiency (IE3)
Mounting Position
Vertical Shaft Down
Full Load Current @ 60 Hz
12.4/6.2 A

Description

Close-Coupled Pump Motor, Bolt Circle Dia. 6 1/2 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182JMV, Hz 60/50, Full Load Amps 12.4/6.2, Full Load Amps @ 50Hz 12.4/6.2, HP 5, HP @ 50Hz 5, Includes Drip Cover, Ins. Class F, Inverter Rated No, Length Less Shaft 10 11/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
