Shop MARATHON

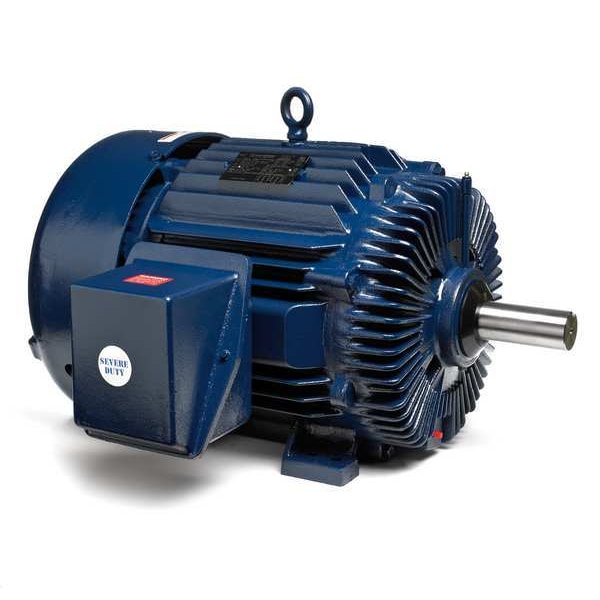

Cooling Tower Motor, Three Phase, 50 HP, 1,777 Nameplate RPM, 230/460V AC, 326T Frame

  • Mfr # 326TTFCD16574
  • Zoro # G9827562
product price:
$
5,739.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
50
Nameplate RPM
1,777
Frame
326T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
326TTFCD16574
Zoro #
G9827562
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
24 7/8 in
Overall Length
30 3/8 in
Shaft Dia.
2 1/8 in
Shaft Length
5 1/2 in
Shaft Diameter
2 1/8 in
Frame Size
326T
Wire Rope Length
30 3/8 in
Length
30 3/8 in

Details

Item
Cooling Tower Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
50
Nameplate RPM
1,777
Frame
326T
Motor Shaft Rotation
CW/CCW
Full Load Amps
123/61.5 A
Voltage
230V AC, 460V AC
Nominal Efficiency
95.4 %
Conduit Box Position
F1
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Standards
CSA (LR2025), IP55, UL (E49747)
Phase
Three
Motor Frame Material
Cast Iron
Motor Thermal Protection
None
Frame Material
Cast Iron
Ins. Class
F
Motor Application
Cooling Tower
Duty
Continuous
CC Number
CC003A
Ambient Temperature
40 Degrees C
Finish
Epoxy-Coated
Hz
50/60 Hz
Motor Shaft Design
Keyed
Motor Mounting Type
Rigid Base
Warranty
1 yr
Motor Efficiency Group
NEMA Premium Efficient
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Mounting Position
Horizontal or Vertical Shaft Up
RPM Range
1,701-1,800
Green Certification or Other Recognition
NEMA Premium(R) Rated
Full Load Amps @ 50Hz
123/61.5 A
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60/50 Hz
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Bearing Type
Ball
Product Type
Cooling Tower Motor
Full Load Current @ 50 Hz
123/61.5 A
Full Load Current @ 60 Hz
123.0/61.5 A
Application
Cooling Tower
Shaft Design
Keyed
Mounting Position
Horizontal/Vertical Shaft Up

Description

Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 50 hp HP, 1,777 RPM Nameplate RPM, 326T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 123.0/61.5 A Full Load Amps, Three Phase, 60/50 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position Horizontal/Vertical Shaft Up, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.15 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 2 1/8 in, Shaft Length 5 1/2 in
