Shop MARATHON

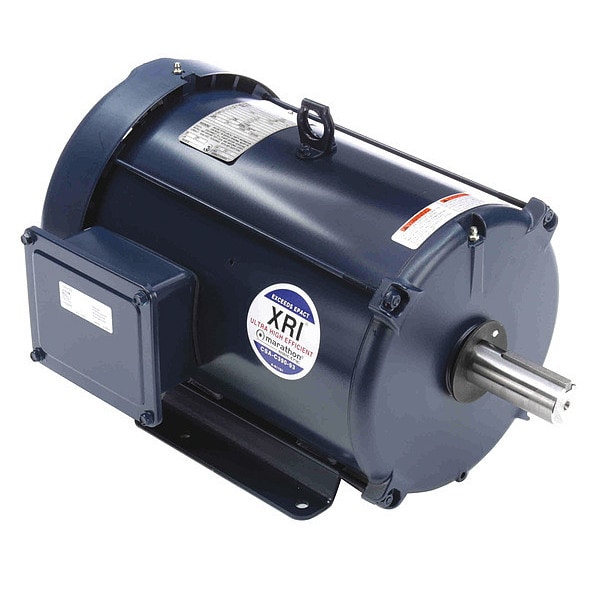

General Purpose Motor, Three Phase, 7 1/2 HP, 1765 rpm Nameplate RPM, 208-230/460V AC, 213T Frame

  • Mfr # 213TTFBD6027

  • Zoro # G6543238

product price:  $922.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
7 1/2
Nameplate RPM
1765 rpm
Frame
213T
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
213TTFBD6027
Zoro #
G6543238
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 3/8 in
Overall Length
18 3/4 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
15 3/8 in
Frame Size
213T
Shaft Diameter
1 3/8 in
Wire Rope Length
18 3/4 in

Details

Item
General Purpose Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
7 1/2
Nameplate RPM
1765 rpm
Frame
213T
Motor Shaft Rotation
CW/CCW
Full Load Amps
20.8-19.6/9.8 A
Voltage
208-230/460V AC
Nominal Efficiency
91.7 %
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Standards
CE Listed, CSA (LR2025), UL (E49747)
Phase
Three
Motor Mounting Position
Horizontal
Hz
60/50 Hz
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty
Continuous
RPM Group
1701-1800
RPM Range
1701-1800
Motor Shaft Design
Keyed
Motor Mounting Type
Rigid Base
Ins. Class
F
Motor Thermal Protection
None
Motor Frame Material
Steel
CC Number
CC003A
Inverter Rated
No
Motor Service Factor
1.15
Motor Bearings
Ball
Motor Application
General Purpose
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
208-230/460
RPM @ 50Hz
1765 rpm
Service Factor @ 50Hz
1.15
HP @ 50Hz
7 1/2 hp
Full Load Amps @ 50Hz
20.8-19.6/9.8 A
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 50 Hz
20.8-19.6/9.8 A
Full Load Current @ 60 Hz
20.8-19.6/9.8 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60/50 Hz
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
1 yr
Nameplate Service Factor @ 50 Hz
1.15
Bearing Type
Ball
Mounting Position
Horizontal
Frame Material
Steel
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Product Type
General Purpose Motor
Inverter Rating
Not Inverter Rated
Nameplate Horsepower @ 50 Hz
7 1/2 hp
Nameplate Voltage @ 50 Hz
190/380V AC
Application
General Purpose
Number of Speeds
1
Nameplate RPM @ 50 Hz
1,725/1,425 RPM
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1765 rpm, Frame 213T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 20.8-19.6/9.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
