  11. GP Motor, 20 HP, 1,775 RPM, 230/460V, 160L

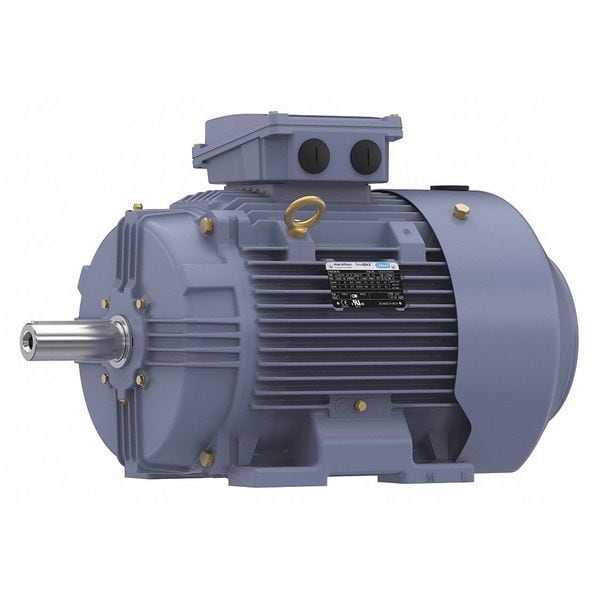

Marathon GP Motor, 20 HP, 1,775 RPM, 230/460V, 160L TCA0152AE211GAA009 - main

GP Motor, 20 HP, 1,775 RPM, 230/460V, 160L

  • Mfr # TCA0152AE211GAA009

  • Zoro # G8661412

product price: $2,140.38
/ea
Item requires special delivery charges. A $205.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
20
RPM Range
1701-1800
Voltage
230/460V AC
Frame
160L
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0152AE211GAA009
Zoro #
G8661412
UPC #
-
Country of Origin
India

Dimensions

Manufacturers Warranty Length
1 yr
Shaft Length
110 mm
Shaft Dia.
42 mm
Overall Length
666 mm
Length Less Shaft
556 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
20
RPM Range
1701-1800
Voltage
230/460V AC
Frame
160L
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
50.0/25.1 A
Phase
Three
Nameplate RPM
1775 rpm
Motor Application
General Purpose
Motor Frame Material
Cast Iron
Hz
60/50 Hz
Motor Service Factor
1.15
Ins. Class
F
Motor Bearings
Ball
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency
93 %
Motor Shaft Rotation
CW/CCW
CC Number
CC003A
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
kW
15.0
Standards
CE, UL Recognized
Inverter Rated
Yes
Usable @ 208V
No
Weight
359.4 lb
Duty Cycle
Continuous
Usable @ 200V
No
Motor Mounting Position
Horizontal
No. of Speeds
1
NEMA Design
N
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, 15.0 kW, Nameplate RPM 1775 rpm, Frame 160L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 50.0/25.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800
