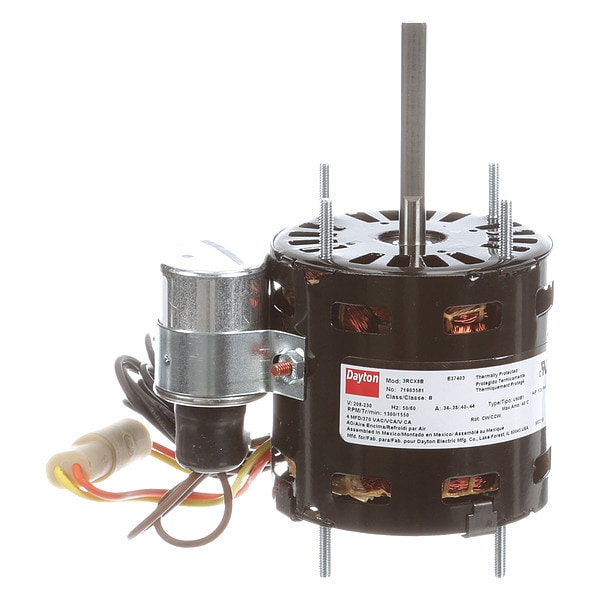

HVAC Motor, 1/20 HP, 1550 rpm, 208-230V, 3.3

  • Mfr # 71903581M
  • Zoro # G1551033
product price:
$
112.99
/ea
Free Shipping & Returns

Key Features

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71903581M
Zoro #
G1551033
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Cord Length
20 in
Shaft Dia.
5/16 in
Length Less Shaft
3 11/16 in
Shaft Length
2 1/2 in
Overall Length
6 21/32 in
Frame Size
3.3
Shaft Diameter
5/16 in
Body Diameter
3.3 in
Wire Rope Length
6 21/32 in
Length
6 21/32 in

Details

Voltage
208V AC to 230V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
Motor Thermal Protection
Auto
Motor Shaft Design
Flat
Number of Shafts
1
Capacitor Required
Capacitor Included
Mounting Pattern
2 x 2
Motor Bearings
Ball
Ins. Class
B
Frame
3.3
Motor Application
HVAC/R
Includes
3 MFD 370VAC Capacitor
Motor Sub Application
Direct Drive Fan/Blower
Motor Service Factor
1
Motor Mounting Type
Ring/Stud
Duty
Continuous
No. of Speeds
1
Hz
50/60 Hz
Phase
Single
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Shaft Rotation
CW/CCW
Mounting Stud Location
4/Both Ends
Full Load Amps
0.4-0.38 A
Application
Replaces 1/20 hp PSC and Less-Efficient Shaded Pole Motors in HVAC/R Applications
Motor Design
Permanent Split Capacitor
Standards
CSA Certified (244617), UL Recognized (E37403)
Max. Ambient Temp.
40 Degrees C
Item
HVAC Motor
Stud/Base Mtg. Pattern
2 in x 2 in
Voltage @ 50Hz
208-230V AC
Motor Mounting Position
All Angle
HP @ 50Hz
1/20
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
RPM @ 50Hz
1,550 RPM
Mounting Stud Pattern
2 in x 2 in
Duty Cycle
Continuous
Full Load Amps @ 50Hz
0.40-0.38 A
Service Factor @ 50Hz
1
Mounting
Stud
Sub Application
General Purpose
Nameplate Horsepower @ 50 Hz
1/20 hp
Frequency
60/50 Hz
Wattage
37 W
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Full Load Current @ 50 Hz
0.40-0.38 A
Insulation Class
B
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
208-230V AC
Full Load Current @ 60 Hz
0.4-0.38 A
Nameplate Service Factor @ 50 Hz
1
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Nameplate RPM @ 50 Hz
1,550 RPM
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.4-0.38 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
