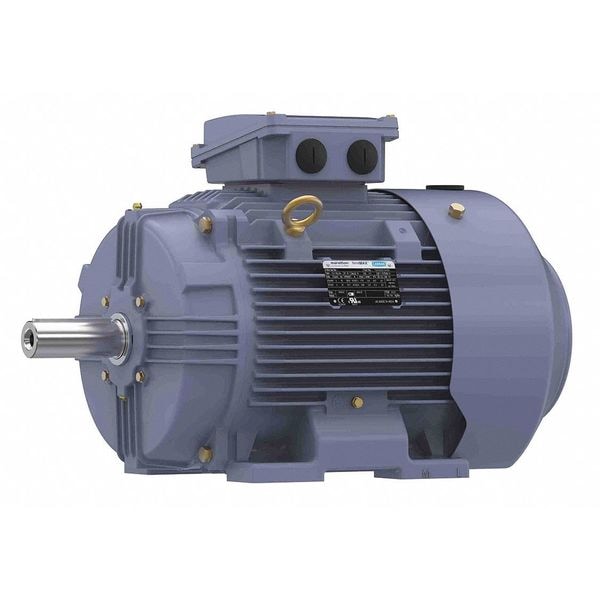

Marathon GP Motor, 20 HP, 3,540 RPM, 230/460V, 160M TCA0151AE211GAA009 - main

GP Motor, 20 HP, 3,540 RPM, 230/460V, 160M

  • Mfr # TCA0151AE211GAA009

  • Zoro # G8661701

product price: $2,642.99
/ea
Item requires special delivery charges. A $155.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
20
RPM Range
3001-3600
Voltage
230/460V AC
Frame
160M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0151AE211GAA009
Zoro #
G8661701
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
110 mm
Shaft Dia.
42 mm
Manufacturers Warranty Length
1 yr
Length Less Shaft
512 mm
Overall Length
622 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
20
RPM Range
3001-3600
Voltage
230/460V AC
Frame
160M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
45.5/22.8 A
Motor Bearings
Ball
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
CC Number
CC003A
Phase
Three
Ins. Class
F
Hz
60/50 Hz
kW
15.0
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Cast Iron
Nameplate RPM
3,540
Standards
CE, UL Recognized
Nominal Efficiency
91 %
Motor Application
General Purpose
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 208V
No
No. of Speeds
1
Usable @ 200V
No
Weight
321.9 lb
Inverter Rated
Yes
NEMA Design
N
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, 15.0 kW, Nameplate RPM 3,540, Frame 160M, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 45.5/22.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600
