  6. GP Motor, 30 HP, 1,780 RPM, 230/460V, 180L

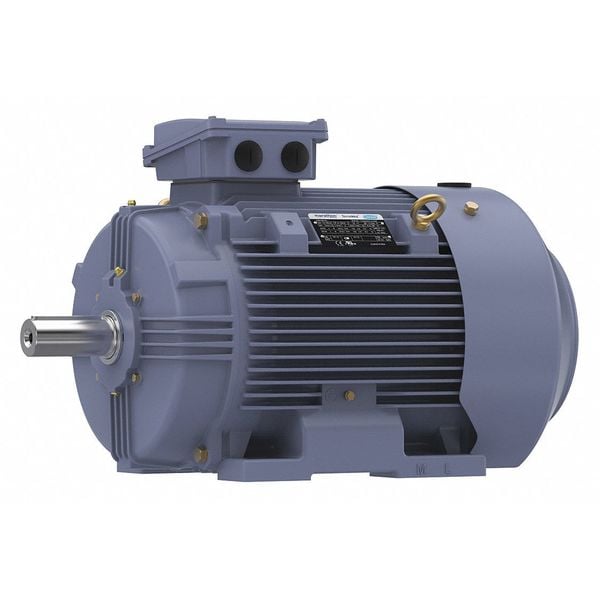

Marathon GP Motor, 30 HP, 1,780 RPM, 230/460V, 180L TCA0222AE211GAA009 - main
Shop MARATHON

GP Motor, 30 HP, 1,780 RPM, 230/460V, 180L

  • Mfr # TCA0222AE211GAA009

  • Zoro # G8661893

product price:  $3,286.99
/ea
Item requires special delivery charges. A $235.00 per item surcharge will be applied.

Key Features

Motor Design
Three-Phase
HP
30
RPM Range
1701-1800
Voltage
230/460V AC
Frame
180L
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TCA0222AE211GAA009
Zoro #
G8661893
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
48 mm
Shaft Length
110 mm
Manufacturers Warranty Length
1 yr
Overall Length
750 mm
Length Less Shaft
640 mm

Details

Item
General Purpose Motor
Motor Design
Three-Phase
HP
30
RPM Range
1701-1800
Voltage
230/460V AC
Frame
180L
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
72.0/36.0 A
Motor Bearings
Ball
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards
CE, UL Recognized
Hz
60/50 Hz
Nominal Efficiency
93.6 %
Ins. Class
F
Motor Application
General Purpose
Motor Service Factor
1.15
Nameplate RPM
1780 rpm
kW
22.0
Motor Frame Material
Cast Iron
Motor Shaft Rotation
CW/CCW
CC Number
CC003A
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Phase
Three
Duty Cycle
Continuous
Inverter Rated
Yes
Usable @ 208V
No
No. of Speeds
1
Weight
551.2 lb
Motor Mounting Position
Horizontal
Usable @ 200V
No
NEMA Design
N
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, 22.0 kW, Nameplate RPM 1780 rpm, Frame 180L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 72.0/36.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800
