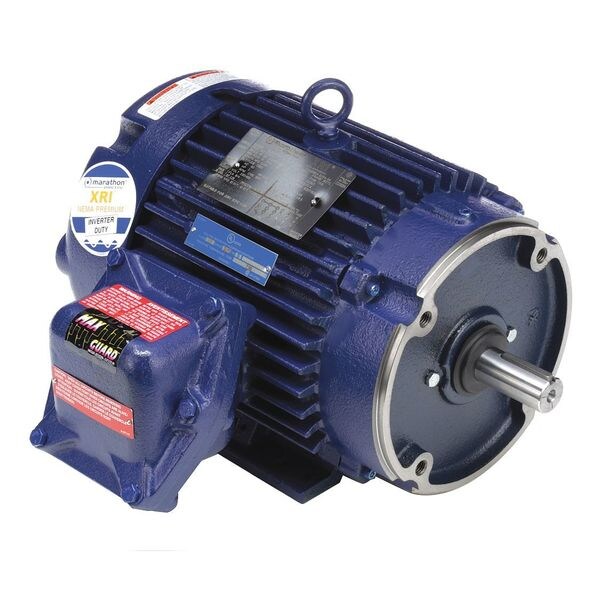

Hazardous Loc Mtr, 3 Ph, TEFC, 3 HP, T3B

  • Mfr # 182TTGCD6569
  • Zoro # G3532541
product price:
$
1,425.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
182TTGCD6569
Zoro #
G3532541
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Lead Length
8 in
Length Less Shaft
14 in
Shaft Length
2 5/8 in
Overall Length
16 5/8 in
Manufacturers Warranty Length
3 yr
Frame Size
182TC
Wire Rope Length
16 5/8 in
Shaft Diameter
1 1/8 in
Length
16 5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
182TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
NEMA Design
B
Temp. Code
T3B
Includes
(11) Leads in the Conduit Box
Motor Shaft Rotation
CW/CCW
CC Number
CC003A
Motor Application
Hazardous Location
Frame Material
Cast Iron
Motor Shaft Design
Keyed
Duty
Continuous
Motor Frame Material
Cast Iron
Item
Hazardous Location Motor
Nominal Efficiency
90.2 %
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Nameplate RPM
1,765 RPM
Full Load Amps
8.0/4.0 A
Motor Bearings
Ball
Motor Service Factor
1.15
Hz
60 Hz
Motor Efficiency Group
NEMA Premium Efficient
Ins. Class
F
Standards
UL Certified for Canada, UL Listed
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
74 lb
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
Horizontal
No. of Speeds
1
Hazardous Location Division
Division I
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Hazardous Location Group
Group C, Group D, Group F, Group G
Application
Hazardous Location
Mounting Position
Horizontal
Product Type
Hazardous Location Motor
Full Load Current @ 60 Hz
8.0/4.0 A
Temperature Code
T3B
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Insulation Class
F
Shaft Design
Keyed
Frequency
60 Hz
Manufacturers Warranty
3 yr
NEMA Design Class
B

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 8.0/4.0 A, 182TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
