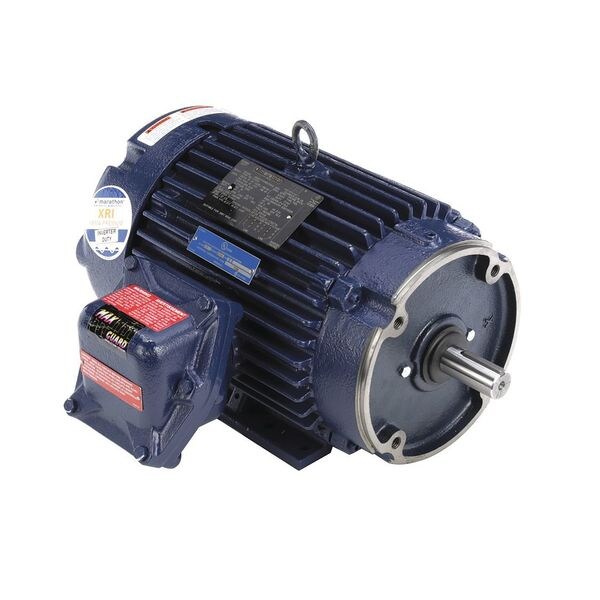

Hazardous Loc Mtr, 3 Ph, TEFC, 5 HP, T3B

  • Mfr # 184TTGCD6575
  • Zoro # G3530134
product price:
$
1,510.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTGCD6575
Zoro #
G3530134
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
16 in
Shaft Dia.
1 1/8 in
Lead Length
8 in
Shaft Length
2 5/8 in
Overall Length
18 5/8 in
Manufacturers Warranty Length
3 yr
Wire Rope Length
18 5/8 in
Shaft Diameter
1 1/8 in
Frame Size
184TC
Length
18 5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
184TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
Ins. Class
F
Motor Service Factor
1.15
Full Load Amps
12.4/6.2 A
CC Number
CC003A
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Includes
(11) Leads in the Conduit Box
Nominal Efficiency
90.2 %
Motor Frame Material
Cast Iron
Motor Application
Hazardous Location
Motor Efficiency Group
NEMA Premium Efficient
Standards
UL Certified for Canada, UL Listed
Motor Shaft Design
Keyed
NEMA Design
B
Item
Hazardous Location Motor
Nameplate RPM
1,755 RPM
Hz
60 Hz
Temp. Code
T3B
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Duty
Continuous
Frame Material
Cast Iron
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Hazardous Location Division
Division I
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Weight
174 lb
Hazardous Location Group
Group D, Group F, Group G
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
NEMA Design Class
B
Application
Hazardous Location
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
3 yr
Bearing Type
Ball
Mounting Position
Horizontal
Full Load Current @ 60 Hz
12.4/6.2 A
Temperature Code
T3B
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
Hazardous Location Motor
Shaft Design
Keyed

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 12.4/6.2 A, 184TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
