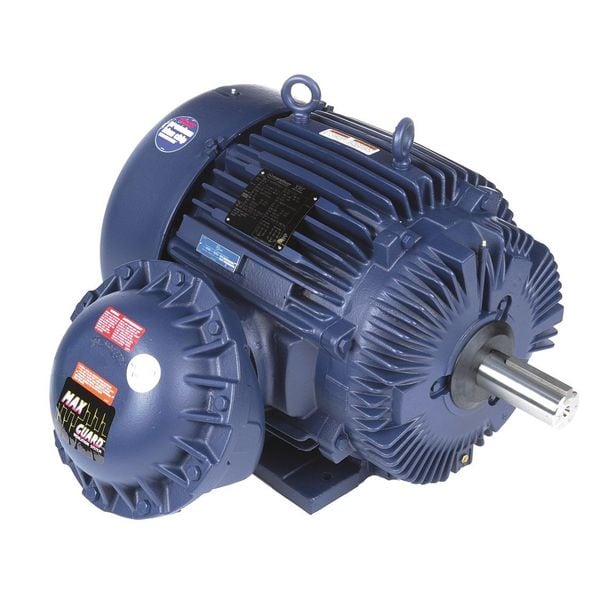

Hazardous Loc Mtr, 3 Ph, TEFC, 40 HP, T3B

  • Mfr # 364TTGS16577
  • Zoro # G3735882
product price:
$
10,305.99
/ea
Additional $500.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
40 hp
RPM Range
1,101-1,200
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
364TTGS16577
Zoro #
G3735882
UPC #
-
Country of Origin
United States
Motor Design
Three-Phase
Phase
Three
HP
40 hp
RPM Range
1,101-1,200
Voltage
230V AC, 460V AC
Frame
364T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Frame Material
Cast Iron
Motor Shaft Design
Keyed
Motor Application
Hazardous Location
Full Load Amps
100.0/50.0 A
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Motor Frame Material
Cast Iron
CC Number
CC003A
Temp. Code
T3B
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Includes
(11) Leads in the Conduit Box
Standards
CSA Certified, UL Listed
Nameplate RPM
1,185 RPM
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Hz
60 Hz
Motor Service Factor
1.15
Duty
Continuous
Motor Efficiency Group
NEMA Premium Efficient
NEMA Design
B
Green Certification or Other Recognition
NEMA Premium(R) Rated
Nominal Efficiency
94.1 %
Motor Bearings
Ball
Item
Hazardous Location Motor
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Hazardous Location Division
Division I
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Weight
2,102 lb
Hazardous Location Group
Group C, Group D, Group F, Group G
Mounting Position
Horizontal
Manufacturers Warranty
3 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
Insulation Class
F
NEMA Design Class
B
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Frequency
60 Hz
Full Load Current @ 60 Hz
100.0/50.0 A
Product Type
Hazardous Location Motor
Application
Hazardous Location
Temperature Code
T3B
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15

Dimensions

Length Less Shaft
25 5/8 in
Shaft Dia.
2 3/8 in
Lead Length
8 in
Shaft Length
6 1/8 in
Overall Length
31 3/4 in
Manufacturers Warranty Length
3 yr
Frame Size
364T
Shaft Diameter
2 3/8 in
Wire Rope Length
31 3/4 in
Length
31 3/4 in

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 40 hp HP, Nameplate RPM 1,185 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 100.0/50.0 A, 364T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled
