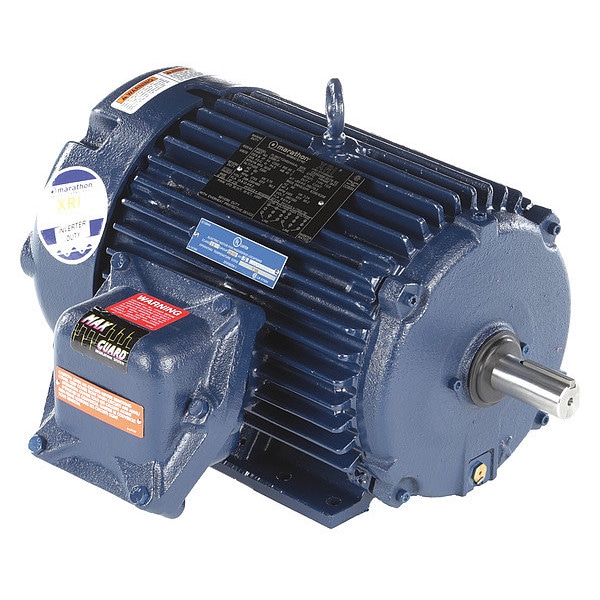

HazLoc Motor, 5 HP, 1755 RPM, 208-230/460V

  • Mfr # 184TTGCD6544
  • Zoro # G2172838
product price:
$
1,453.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTGCD6544
Zoro #
G2172838
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
2 7/8 in
Shaft Dia.
1 1/8 in
Overall Length
17 7/8 in
Length Less Shaft
15 in
Manufacturers Warranty Length
3 yr
Frame Size
184T
Wire Rope Length
17 7/8 in
Shaft Diameter
1 1/8 in
Length
17 7/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
184T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Includes
(11) 8 in Leads through 3/4 in NPT Nipple
Item
Hazardous Location Motor
Motor Frame Material
Cast Iron
Motor Efficiency Group
NEMA Premium Efficient
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Bearings
Ball
CC Number
CC003A
Hz
60 Hz
Nameplate RPM
1,755 RPM
Ins. Class
F
NEMA Design
B
Nominal Efficiency
90.2 %
Standards
UL Certified for Canada, UL Listed
Duty
Continuous
Temp. Code
T3B
Motor Shaft Rotation
CW/CCW
Motor Application
Hazardous Location
Full Load Amps
12.4/6.2 A
Motor Shaft Design
Keyed
Frame Material
Cast Iron
Motor Service Factor
1.15
Green Certification or Other Recognition
NEMA Premium(R) Rated
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Weight
156 lb
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
Hazardous Location Division
Division I
Duty Cycle
Continuous
No. of Speeds
1
Hazardous Location Group
Group C, Group D, Group F, Group G
Application
Hazardous Location
Ambient Temperature - Maximum
40 Degrees C
Product Type
Hazardous Location Motor
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
3 yr
NEMA Design Class
B
Frequency
60 Hz
Insulation Class
F
Mounting Position
Horizontal
Temperature Code
T3B
Bearing Type
Ball
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Number of Speeds
1
Full Load Current @ 60 Hz
12.4/6.2 A

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 12.4/6.2 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
