Dayton

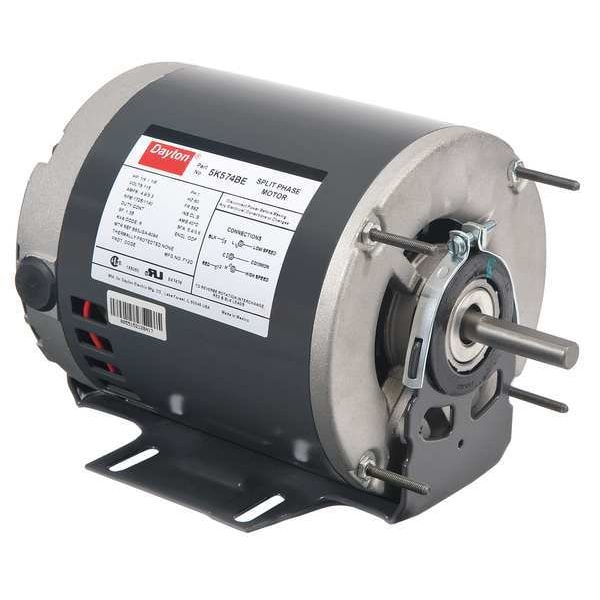

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56Z

product price: $292.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Phase Single
  • Motor Shaft Rotation CW/CCW
  • Frame 56Z
  • HP 1/3, 1/6
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Manufacturers Warranty Length 1 yr
Overall Length 10 5/16 in
Length Less Shaft 8 7/16 in
Shaft Length 1 7/8 in

Details

Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item General Purpose Motor
Phase Single
Motor Shaft Rotation CW/CCW
Frame 56Z
HP 1/3, 1/6
Hz 60 Hz
Motor Service Factor 1.35
Ins. Class B
Motor Bearings Ball
RPM Group 1701-1800
Max. Ambient Temp. 104 Degrees F
RPM Range 1,701-1,800
Motor Mounting Type Cradle Base
Full Load Amps 6.1/3.8 A
Duty Continuous
Motor Frame Material Rolled Steel
Nameplate RPM 1,725/1,140
Motor Application General Application
Frame Material Rolled steel
Motor Shaft Design Keyed
No. of Speeds 2
Motor Efficiency Group Standard Efficient
Footnotes 31,45,50
Standards CSA (156060), UL (E47479)
Motor Thermal Protection None
Nominal Efficiency 59 %
Motor Design Split-Phase
Voltage 115V AC
Motor Enclosure Design Open Dripproof
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3, 1/6 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 6.1/3.8 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
