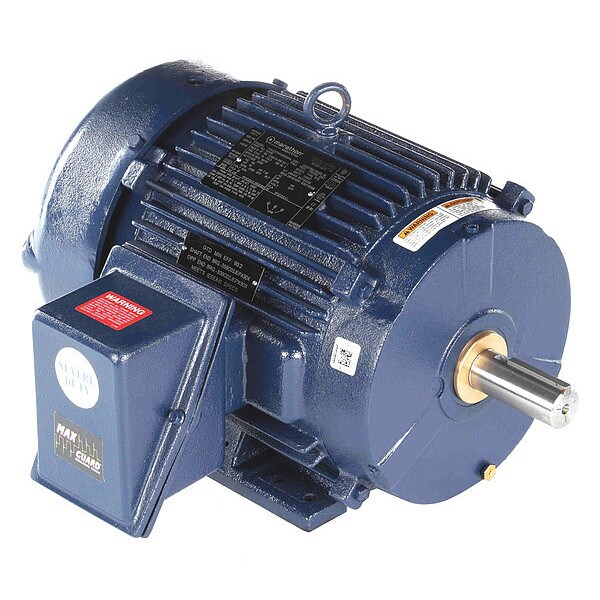

IEEE 841 Motor, 3 Phase, 10 HP, 3520 Nameplate RPM, 460, 215T Frame (Discontinued)
- Mfr # 215THFND9001
- Zoro # G6573870
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
215THFND9001
Zoro #
G6573870
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1 3/8 in
Overall Length
19 5/8 in
Shaft Length
3 1/2 in
Length Less Shaft
16 1/8 in
Manufacturers Warranty Length
1 yr
Description
IEEE 841 Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 3520, No. of Speeds 1, Voltage 460, Full Load Amps 11.9, 215T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
