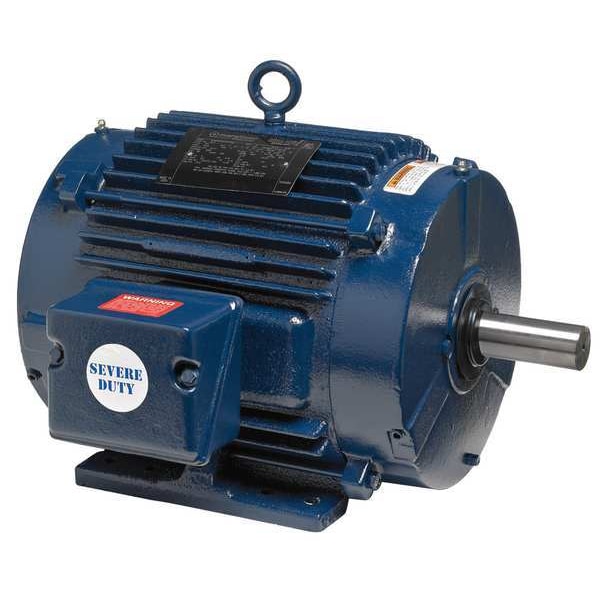

Kiln Motor, 3-Ph, 5 HP, 1170 RPM, 460V, 215T
Mfr # 215TTTS17077
Zoro # G9927477
product price:Â $3,071.99
/ea
Additional $230.00 delivery surcharge applies per item.
Key Features
Thermal Protection
T-Stat
Motor Mounting Position
Horizontal
Shaft Length
3 5/8 in
Full Load Amps
6.9 A
Voltage
460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215TTTS17077
Zoro #
G9927477
UPC #
-
Country of Origin
United States
Dimensions
Shaft Length
3 5/8 in
Shaft Dia.
1 3/8 in
Overall Length
17 1/4 in
Lead Length
96 in
Length Less Shaft
13 5/8 in
Manufacturers Warranty Length
2 yr
Description
Kiln Duty Motor, Three Phase, Motor Design 3-Phase, 5 hp HP, Nameplate RPM 1,170 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 6.9 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 90 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
