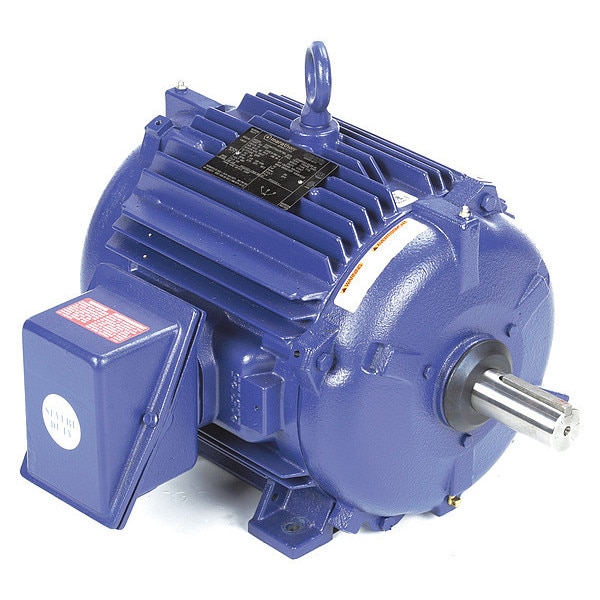

Kiln Motor, 3-Ph, 7.5 HP, 1170 RPM, 460V
Mfr # 254TTTNA17077
Zoro # G9927461
product price: $3,285.09
/ea
Additional $250.00 delivery surcharge applies per item.
Key Features
Motor Mounting Type
Rigid Base
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
Hz
60 Hz
Motor Enclosure Design
Totally Enclosed Air-Over
Standards
CSA, UL Recognized
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
254TTTNA17077
Zoro #
G9927461
UPC #
-
Country of Origin
United States
Dimensions
Shaft Length
4 1/4 in
Lead Length
96 in
Overall Length
20 5/8 in
Shaft Dia.
1 5/8 in
Length Less Shaft
16 3/8 in
Manufacturers Warranty Length
2 yr
Description
Kiln Duty Motor, Three Phase, Motor Design 3-Phase, 7 1/2 hp HP, Nameplate RPM 1,170 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 9.8 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 90 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
