Century

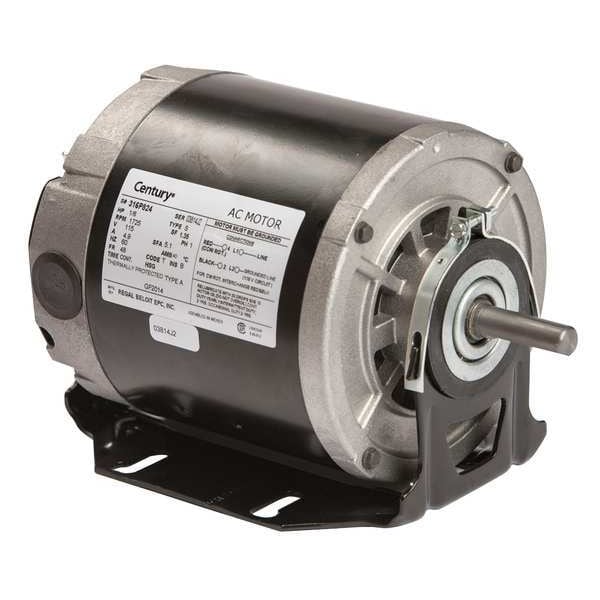

Split-Phase Belt Drive Motor, 1/6 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM

original price: $186.10
5% off
new price: $174.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Split-Phase
  • Motor Enclosure Design Open Dripproof
  • HP 1/6
  • No. of Speeds 1
  • RPM Range 1,701-1,800
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Body Dia. 5 5/8 in
Overall Length 8 7/8 in
Resilient Ring Dia. 2 1/2 in
Length Less Shaft 7 3/8 in
Shaft Length 1 1/2 in

Details

Item Belt Drive Motor
Motor Design Split-Phase
Motor Enclosure Design Open Dripproof
HP 1/6
No. of Speeds 1
RPM Range 1,701-1,800
Nameplate RPM 1,725
Voltage 115V AC
Frame 48
Motor Mounting Type Cradle Base
Motor Thermal Protection Auto
Motor Service Factor 1.35
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase Single
Motor Application HVAC/R
Motor Sub Application Belt Drive Fan/Blower
Full Load Amps 4.9 A
Motor Bearings Sleeve
Standards CSA
Duty Continuous
Motor Mounting Position All Angle
Footnotes 92
Motor Shaft Rotation CW/CCW
Nominal Efficiency 46 %
Hz 60 Hz
Max. Ambient Temp. 104 Degrees F
Ins. Class B
Frame Material Rolled steel
Ring to Ring Center 6 15/16 in
Includes 5/8" dia. Shaft Bushing
Motor Frame Material Steel
Includes Shaft Bushing Yes
Weight 11 lb
Usable @ 208V No
Duty Cycle Continuous
Usable @ 200V No

Description

Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/6 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.9 A Full Load Amps, 48 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
