  11. Metric Motor, 5 1/2 HP, 1,765 RPM, 575V

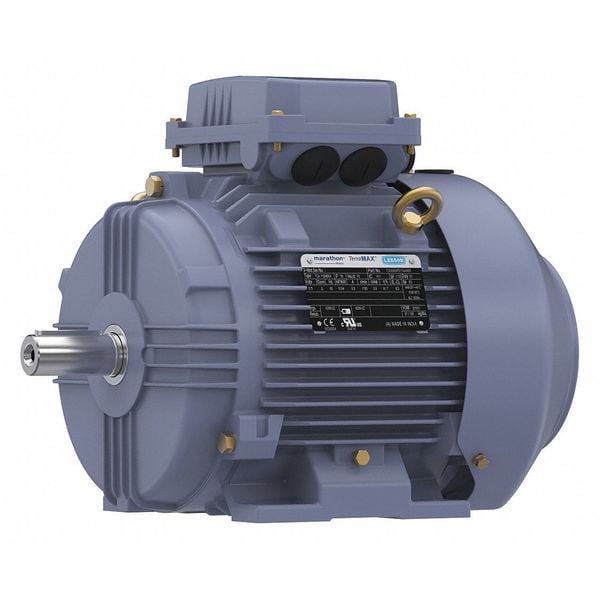

Marathon Metric Motor, 5 1/2 HP, 1,765 RPM, 575V TCA0042AP211GAA009 - main

Metric Motor, 5 1/2 HP, 1,765 RPM, 575V

  • Mfr # TCA0042AP211GAA009

  • Zoro # G8661990

product price: $757.99
/ea
Sold in multiples of 2 for $1,515.98
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5 1/2
RPM Range
1701-1800
Voltage
575V AC
Frame
112M
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCA0042AP211GAA009
Zoro #
G8661990
UPC #
-
Country of Origin
India

Dimensions

Shaft Length
60 mm
Manufacturers Warranty Length
1 yr
Shaft Dia.
28 mm
Length Less Shaft
339 mm
Overall Length
399 mm

Details

Item
Metric Motor
Motor Design
Three-Phase
HP
5 1/2
RPM Range
1701-1800
Voltage
575V AC
Frame
112M
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Full Load Amps
5.5 A
CC Number
CC003A
Hz
60 Hz
Ins. Class
F
Phase
Three
Motor Frame Material
Cast Iron
Motor Bearings
Ball
Motor Application
General Purpose
Voltage Compatibility
575V AC
Nominal Efficiency
91.7 %
Standards
CE, UL Recognized
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Duty
Continuous
Nameplate RPM
1765 rpm
kW
4.0
Motor Service Factor
1.15
Usable @ 200V
No
No. of Speeds
1
Weight
125.7 lb
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Usable @ 208V
No
Inverter Rated
Yes
NEMA Design
N
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque

Description

Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 1/2 HP, 4.0 kW, Nameplate RPM 1765 rpm, Frame 112M, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, UL Recognized
