  6. Motor, 7 1/2 HP, 3,525 rpm, 213HPV, 230/460V

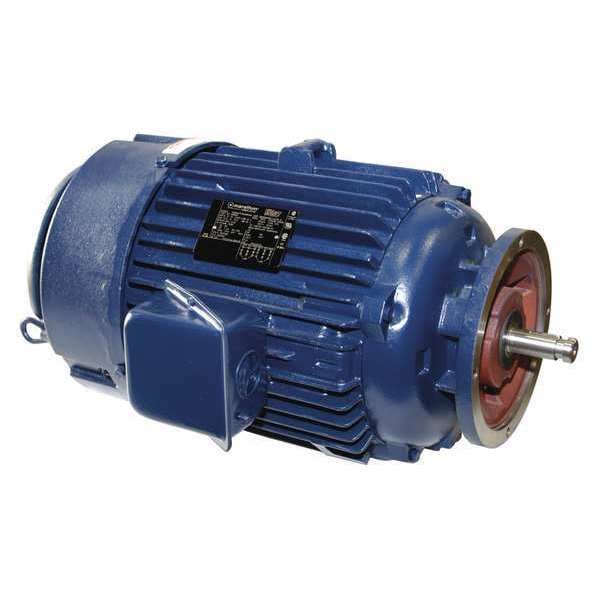

Marathon Motor, 7 1/2 HP, 3,525 rpm, 213HPV, 230/460V 213TTFWD16016 - main

Motor, 7 1/2 HP, 3,525 rpm, 213HPV, 230/460V

  • Mfr # 213TTFWD16016

  • Zoro # G4354070

product price:  $1,977.99
/ea
Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
7 1/2
Nameplate RPM
3,525
Frame
213HPV
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
213TTFWD16016
Zoro #
G4354070
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
18 7/16 in
Shaft Length
2 3/4 in
Overall Length
21 3/16 in
Shaft Dia.
1 1/8 in
Body Dia.
9.9 in
Height
11 7/16 in
Bolt Circle Dia.
9 1/8 in

Details

Item
Vertical Pump Motor
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
7 1/2
Nameplate RPM
3,525
Frame
213HPV
Motor Shaft Rotation
CW/CCW
Voltage
230/460V AC
RPM Range
3,001-3,600
Hz
60 Hz
Motor Sub Application
Vertical Pump
Motor Application
Pump
Nominal Efficiency
89.5 %
Standards
CE Mark, CSA Certified, UL Recognized
Ambient Temperature
40 Degrees C
Ins. Class
F
CC Number
CC003A
Finish
Unfinished
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Mounting Position
Vertical Shaft Down
Duty
Continuous
Full Load Amps
18.6/9.3
Phase
Three
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Bearings
Ball
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
No
Motor Shaft Design
Keyed
Weight
157 lb
Conduit Box Location
Exterior
No. of Speeds
1
NEMA Design
B
Usable @ 200V
No
Conduit Box Position
F1, F2

Description

Vertical Pump Motor, Body Dia. 9.9 in, Bolt Circle Dia. 9 1/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Finish Unfinished, Frame 213HPV, Hz 60 Hz, Full Load Amps 18.6/9.3, Height 11 7/16 in, HP 7 1/2, Ins. Class F, Length Less Shaft 18 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
