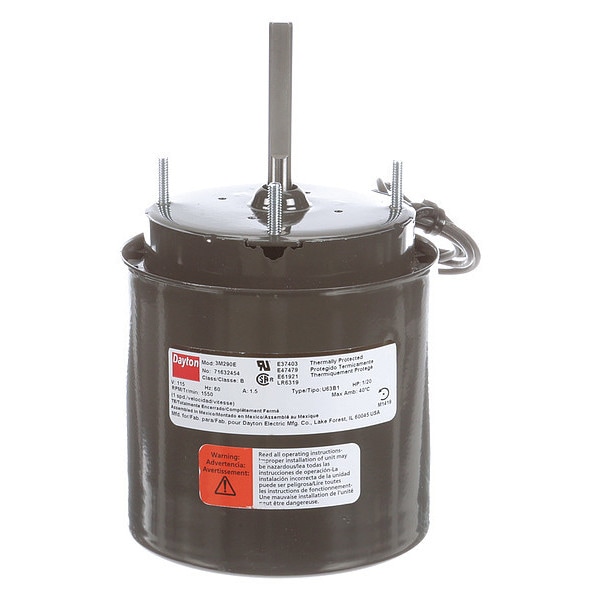

Dayton HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3 71632454M - main

HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71632454M

  • Zoro # G2101251

product price:  $94.99
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71632454M
Zoro #
G2101251
UPC #
00190735291689
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16 in
Body Dia.
4 in
Cord Length
12 in
Shaft Length
2 1/4 in
Length Less Shaft
4 1/4 in
Body Diameter
4 in
Shaft Diameter
5/16 in
Frame Size
3.3
Overall Length
6 1/2 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/20
RPM Range
1,501-1,600
No. of Speeds
1
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Stud/Base Mtg. Pattern
2 in x 2 in
Frame
3.3
Standards
CSA Certified, UL Recognized
Phase
Single
Duty
Continuous
Motor Thermal Protection
Auto
Mounting Stud Location
4/Shaft End
Ins. Class
B
Full Load Amps
1.8 A
Motor Service Factor
1
Motor Shaft Rotation
CCWSE
Max. Ambient Temp.
40 Degrees C
Motor Application
HVAC/R
Motor Mounting Type
Ring/Stud
Mounting Pattern
2 x 2
Motor Design
Shaded Pole
Number of Shafts
1
Item
HVAC Motor
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design
Flat
Motor Sub Application
Direct Drive Fan/Blower
Motor Bearings
Ball
Hz
60 Hz
Capacitor Required
Capacitor Not Required
Mounting Stud Pattern
2 in x 2 in
Motor Mounting Position
All Angle
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Type
OEM Replacement
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
1.8 A
Shaft Design
Flat
Frequency
60 Hz
Drive Type
Direct Drive
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Insulation Class
B
Sub Application
General Purpose
Bearing Type
Ball
Wattage
37 W
Ambient Temperature - Maximum
40 Degrees C

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.8 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
