  11. DC Permanent Magnet Motor, 1/3 HP, 90VDC
Shop All DC Permanent Magnet Motors
Leeson

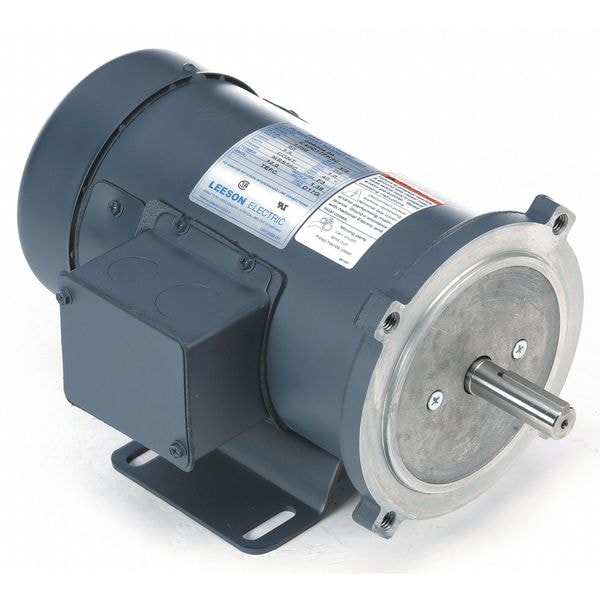

DC Permanent Magnet Motor, 1/3 HP, 90VDC

product price: $377.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1/3
  • Voltage 90V DC
  • Nameplate RPM 1,750
  • Shaft Dia. 5/8 in
  • Frame 56C
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Overall Length 11 5/16 in
Length Less Shaft 9 5/16 in
Body Dia. 4 7/8 in
Shaft Length 1 7/8 in
Stud Size 3/8"-16

Details

Item DC Permanent Magnet Motor
HP 1/3
Voltage 90V DC
Nameplate RPM 1,750
Frame 56C
Full Load Amps 3.5 A
RPM Range 1,701-1,800
Motor Thermal Protection None
Rotation CW/CCW
Brush Type Carbon
Stud Quantity 4
RPM Group 1701-1800
Max. Ambient Temp. 40 Degrees C
Ins. Class F
Motor Application General Application
Voltage Compatibility 90V DC
Standards CSA (LR2025), UL (E49747)
Features Removable Base, Rugged Die Cast Endshields with Steel Bearing Inserts
Motor Enclosure Design Totally Enclosed Fan-Cooled
Full Load Torque 12 in-lb
Motor Mounting Type Face/Base
Motor Design Permanent Magnet DC
Bearings Ball
Motor Shaft Rotation CW/CCW
Duty Cycle Continuous
Motor Service Factor 1
Removable Base Yes
Motor Bearings Ball
Weight 22 lb
Motor Shaft Design Keyed

Description

DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/3 HP, Nameplate RPM 1,750, Voltage 90V DC, 3.5 A Full Load Amps, 56C Frame, Full Load Torque 12 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in

Restrictions

  • Hazardous material
