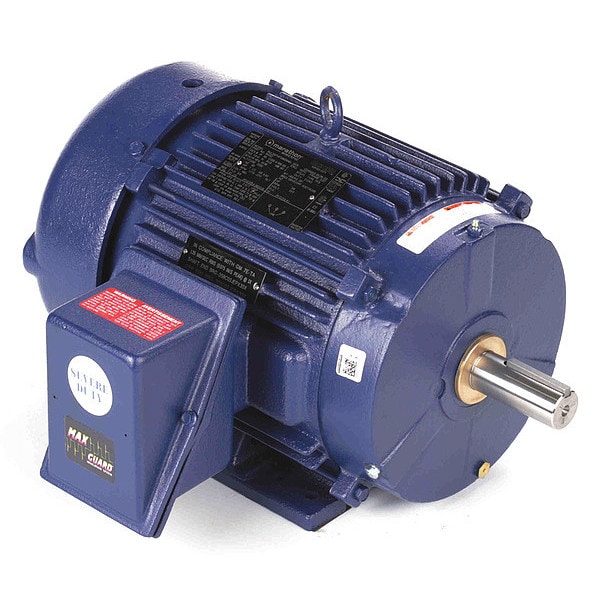

Severe Duty Motor, Three Phase, 7 1/2 hp HP, 1,768 RPM Nameplate RPM, 460V AC, 213T Frame
Mfr # 213THFCD9026
Zoro # G6566548
product price:Â $1,519.99
/ea
Additional $95.00 delivery surcharge applies per item.
Key Features
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
7 1/2 hp
Nameplate RPM
1,768 RPM
Frame
213T
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
213THFCD9026
Zoro #
G6566548
UPC #
-
Country of Origin
Mexico
Dimensions
Manufacturers Warranty Length
1 yr
Overall Length
18 1/2 in
Shaft Length
3 1/2 in
Shaft Dia.
1 3/8 in
Length Less Shaft
16 1/8 in
Description
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,768 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 9.5 A, 213T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
