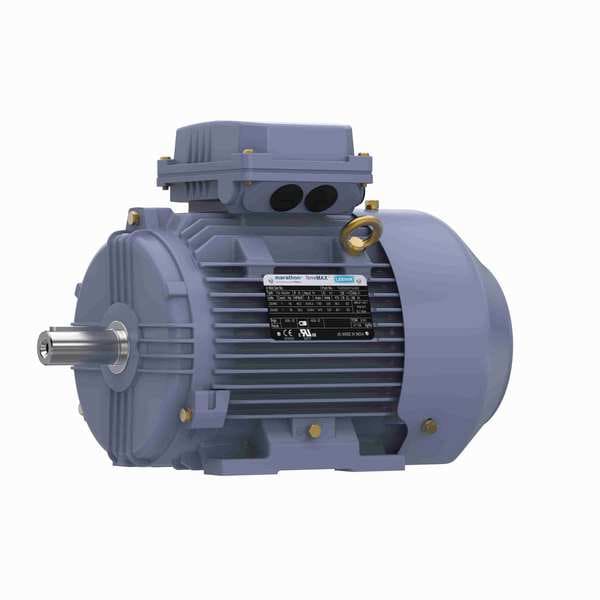

Three-Phase General Purpose Motor, 10 HP, 132M Frame, 230/460V AC Voltage, 1775 Nameplate RPM

  • Mfr # TCA7P52AE231GAA009

  • Zoro # G313037660

product price:  $1,325.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
10
Nameplate RPM
1775
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
25.4/12.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TCA7P52AE231GAA009
Zoro #
G313037660
UPC #
722856176028
Country of Origin
India

Dimensions

Length Less Shaft
423 mm
Overall Length
503 mm
Shaft Length
80 mm
Frame Size
132M
Wire Rope Length
503 mm

Details

Item
General Purpose Motor
HP
10
Nameplate RPM
1775
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
25.4/12.7 A
Frame
132M
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
91.7 %
Standards
CE Certified, UL Listed
Duty Cycle
Continuous
Weight
223 lb
Motor Thermal Protection
None
Inverter Rated
Yes
Inverter Rating
Inverter Rated
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Mounting Position
Horizontal
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Cast Iron
NEMA Design Class
B
Full Load Current @ 60 Hz
25.4/12.7 A
Frequency
60 Hz
Product Type
General Purpose Motor
Bearing Type
Ball
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1775, Frame 132M, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.4/12.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,701-1,800, CE Certified, UL Listed
