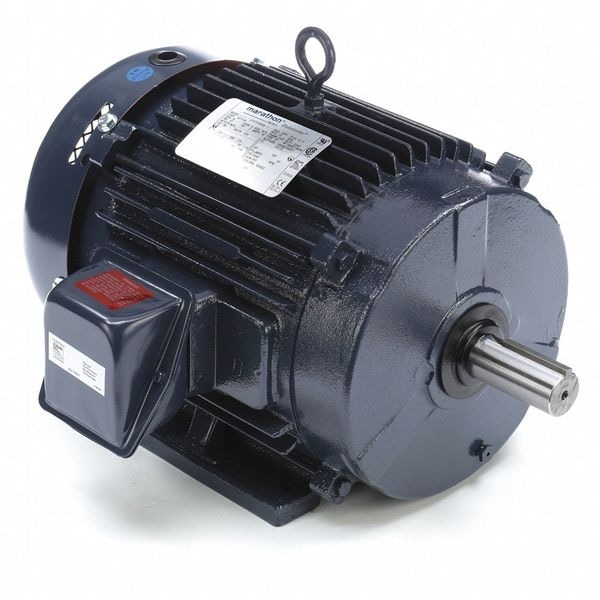

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 575V AC Voltage, 1762 rpm Nameplate RPM
Mfr # 215TTFCD6030
Zoro # G9815811
product price:Â $1,242.99
/ea
Additional $105.00 delivery surcharge applies per item.
Key Features
HP
10
Nameplate RPM
1762 rpm
Voltage
575V AC
Motor Mounting Type
Rigid Base
Full Load Amps
10.0 A
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
215TTFCD6030
Zoro #
G9815811
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
16 5/8 in
Overall Length
20 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 3/8 in
Frame Size
215T
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1762 rpm, Frame 215T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 10.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
