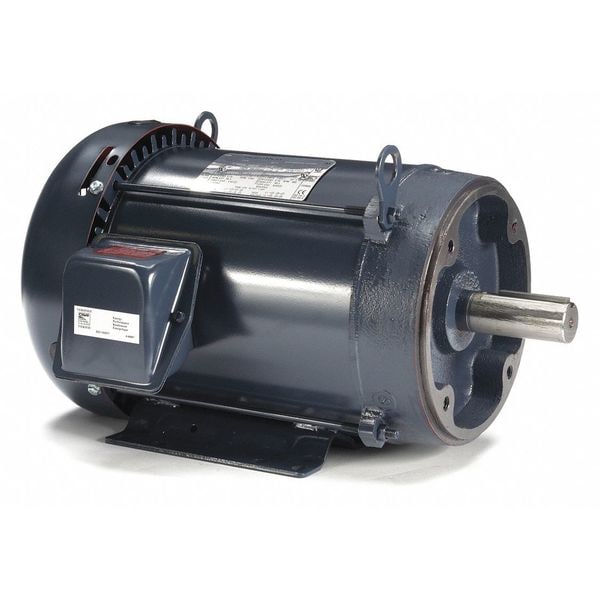

Three-Phase General Purpose Motor, 3 HP, 213TC Frame, 230/460V AC Voltage, 1185 rpm Nameplate RPM

  • Mfr # 213TTFBD6078

  • Zoro # G9816107

product price:
$
1,024.99
/ea
Additional $80.00 delivery surcharge applies per item.
See details

Key Features

HP
3
Nameplate RPM
1185 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.6/4.3 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
213TTFBD6078
Zoro #
G9816107
UPC #
-
Country of Origin
Mexico
Item
General Purpose Motor
HP
3
Nameplate RPM
1185 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
8.6/4.3 A
Frame
213TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Full Load Amps @ 50Hz
8.6/4.3 A
Voltage @ 50Hz
230/460
Usable @ 200V
Not Usable at 200V
Weight
140 lb
Duty Cycle
Continuous
HP @ 50Hz
3 hp
Service Factor @ 50Hz
1.15
RPM @ 50Hz
1185 rpm
NEMA Design
B
Usable @ 208V
Not Usable at 208V
Capacitor Required
No
Inverter Rating
Inverter Rated
Nameplate RPM @ 50 Hz
2,860/2,875/2,885 RPM
Manufacturers Warranty
1 yr
Nameplate Voltage @ 50 Hz
220/380V AC, 240/415V AC, 400V AC
Motor Enclosure Type
Totally Enclosed Fan Cooled
Application
General Purpose
Number of Speeds
1
Nameplate Horsepower @ 50 Hz
3 hp
Full Load Current @ 60 Hz
8.6/4.3 A
Full Load Current @ 50 Hz
8.6/4.3 A
Frequency
60/50 Hz
Bearing Type
Ball
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Service Factor @ 50 Hz
1.15
Frame Material
Steel
NEMA Design Class
B
Product Type
General Purpose Motor
Insulation Class
F
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1185 rpm, Frame 213TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 8.6/4.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200
