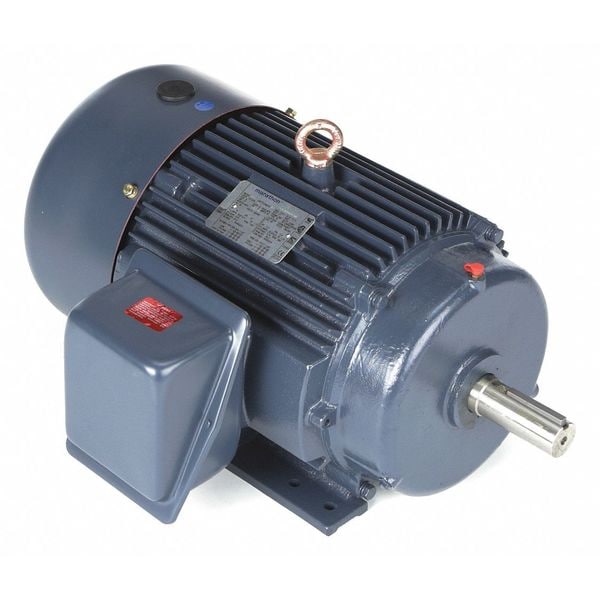

Three-Phase General Purpose Motor, 10 HP, 256T Frame, 230/460V AC Voltage, 1180 rpm Nameplate RPM
Mfr # 256TTFCD6076
Zoro # G9815732
product price:Â $2,062.95
/ea
Item requires special delivery charges. A $140.00 per item surcharge will be applied.
Key Features
HP
10
Nameplate RPM
1180 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
25.8/12.9 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
256TTFCD6076
Zoro #
G9815732
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
21 7/8 in
Overall Length
25 7/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1180 rpm, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.8/12.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, Continuous Duty, 1,101-1,200
