Shop MARATHON

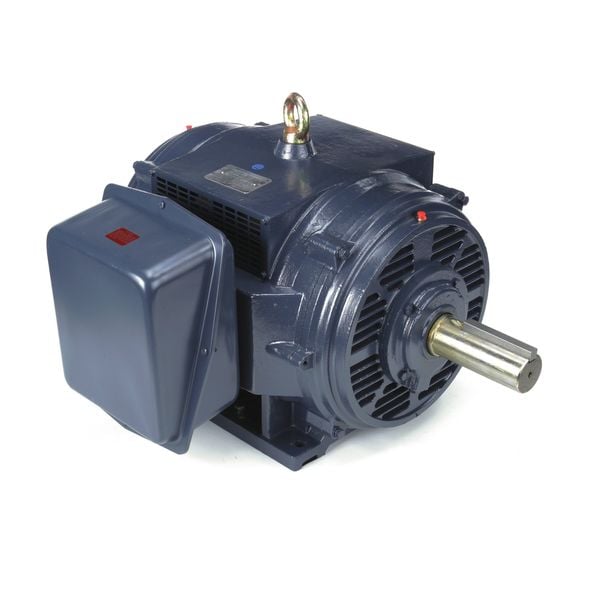

Three-Phase General Purpose Motor, 100 HP, 404T Frame, 230/460V AC Voltage, 1788 rpm Nameplate RPM

  • Mfr # 404TTDCD6060

  • Zoro # G9877542

product price:
$
7,120.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
100
Nameplate RPM
1788 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
228.0/114.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
404TTDCD6060
Zoro #
G9877542
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
29 15/16 in
Overall Length
37 3/16 in
Shaft Dia.
2 7/8 in
Shaft Length
7 1/4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
2 7/8 in
Frame Size
404T
Wire Rope Length
37 3/16 in
Length
37 3/16 in

Details

Item
General Purpose Motor
HP
100
Nameplate RPM
1788 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
228.0/114.0 A
Frame
404T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.4 %
Standards
CSA Certified, UL Recognized
CC Number
CC003A
Includes
Conduit Box
Motor Thermal Protection
None
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Weight
1,219 lb
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Capacitor Required
No
Inverter Rating
Inverter Rated
Nameplate RPM @ 50 Hz
1,750 RPM
NEMA Design Class
B
Frequency
60 Hz
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Nameplate Voltage @ 50 Hz
230/460V AC
Bearing Type
Ball
Full Load Current @ 60 Hz
228.0/114.0 A
Efficiency Rating
NEMA Premium Efficiency
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
Manufacturers Warranty
1 yr
Product Type
General Purpose Motor
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 100 HP, Nameplate RPM 1788 rpm, Frame 404T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 228.0/114.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.4 Percent, Continuous Duty, 1701-1800
