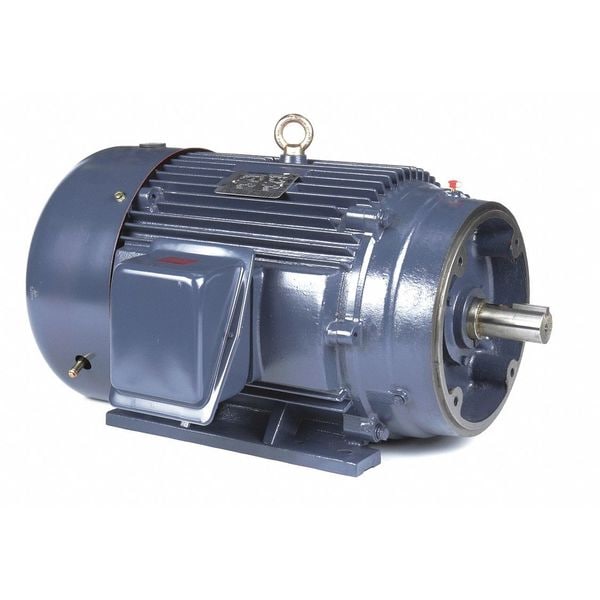

Marathon Three-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM 326TSTFCD6003 - main

Three-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460V AC Voltage, 3568 rpm Nameplate RPM

  • Mfr # 326TSTFCD6003

  • Zoro # G9877393

product price:  $4,494.66
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

HP
50
Nameplate RPM
3568 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
113.0/56.5 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
326TSTFCD6003
Zoro #
G9877393
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
25 15/16 in
Overall Length
29 11/16 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr
Frame Size
326TS
Shaft Diameter
1 7/8 in

Details

Item
General Purpose Motor
HP
50
Nameplate RPM
3568 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
113.0/56.5 A
Frame
326TS
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
95.8 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Inverter Rated
No
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Weight
595 lb
Capacitor Required
No
Full Load Current @ 60 Hz
113.0/56.5 A
Insulation Class
F
Application
General Purpose
Bearing Type
Ball
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Nameplate RPM @ 50 Hz
725/727/729 RPM
Inverter Rating
Not Inverter Rated
Manufacturers Warranty
1 yr
Number of Speeds
1
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 50 HP, Nameplate RPM 3568 rpm, Frame 326TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 113.0/56.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 3001-3600
