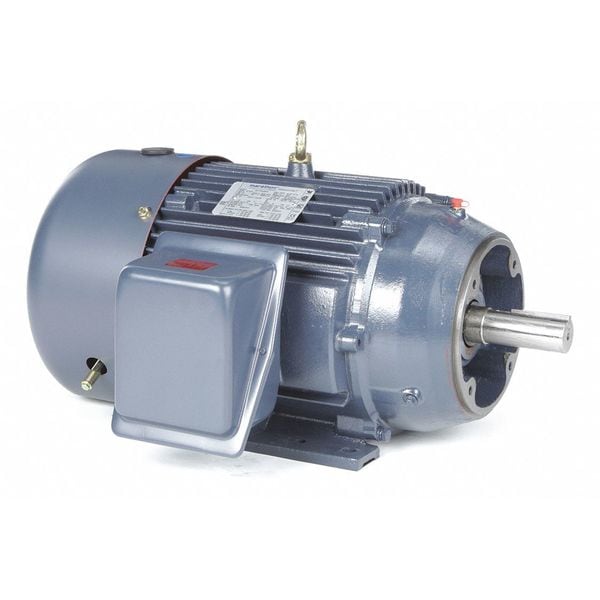

Marathon Three-Phase General Purpose Motor, 15 HP, 254TC Frame, 230/460V AC Voltage, 3545 rpm Nameplate RPM 254TTFCD6003 - main

Three-Phase General Purpose Motor, 15 HP, 254TC Frame, 230/460V AC Voltage, 3545 rpm Nameplate RPM

  • Mfr # 254TTFCD6003

  • Zoro # G9816012

product price:  $1,720.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

HP
15
Nameplate RPM
3545 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
35.5/17.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
254TTFCD6003
Zoro #
G9816012
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
20 5/8 in
Overall Length
24 5/8 in
Shaft Dia.
1 5/8 in
Shaft Length
4 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
1 5/8 in
Frame Size
254TC

Details

Item
General Purpose Motor
HP
15
Nameplate RPM
3545 rpm
Voltage
230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
35.5/17.8 A
Frame
254TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93.6 %
Standards
CE, CSA, UL Listed
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Weight
289 lb
Inverter Rating
Inverter Rated
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Frequency
60 Hz
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Full Load Current @ 60 Hz
35.5/17.8 A
Ambient Temperature - Maximum
40 Degrees C
Nameplate Voltage @ 50 Hz
220/380V AC, 240/415V AC, 400V AC
Number of Speeds
1
Manufacturers Warranty
1 yr
Product Type
General Purpose Motor
Insulation Class
F
NEMA Design Class
B
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
2840/2865/2875 RPM
Motor Enclosure Type
Totally Enclosed Fan Cooled

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 3545 rpm, Frame 254TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 35.5/17.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600
